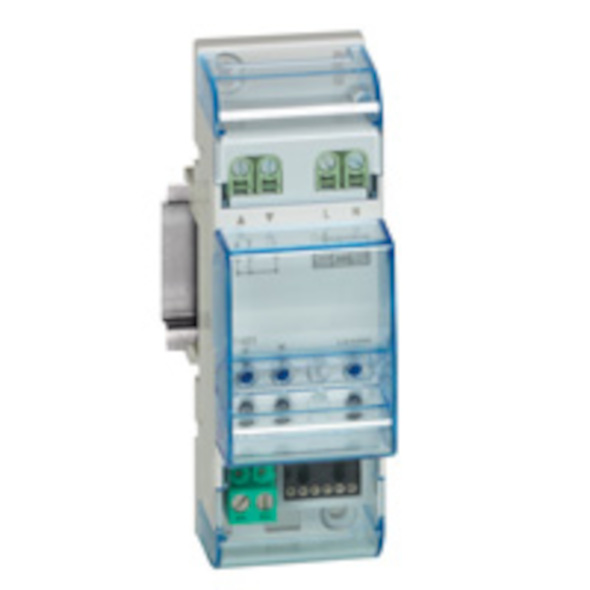

2 DIN modules actuator for shutter/tilt
BT-F401T
|
8005543822135
Description
DIN actuator with 2 interlocked relays, 3 buttons and 3 LEDs for shutter control. Supports up/down, monostable/bistable modes and preset via control, H+C app or touchscreen. slats tilt positions
Product characteristics
- Compatibility with slat is ensured for traditional motors and shutter technical specifications whereby, at the lower limit stop, the slats are fully closed and reopen when the shutter is raised
- 2 DIN modules
- SCS BUS power supply: 18-27 Vdc.Nominal BUS voltage: 27 Vdc.Maximum current consumption: 18 mA.Load rating: 250 Vac, 2 A
- Calibration (manual from the device or advanced from H+P) enables management of up to 5
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor usage only
Products benefits
Installation
- DIN installation into the cabinet
Usage
- H+P is the tool dedicated to installer which simplifies the configuration process of the command. In addition to local control, it can be managed through the Home + Control app and touchscreen interfaces for greater convenience and advanced automation
Advantages
- The control experience is now improved with the management of multiple functions (up to 4 functions on 2 modules) over the same modularity following market trends and the advanced home automation systems. Shutters can be combined in different ways and personalized with new dedicated key covers.
- Management of tilt function is achieved through five slat tilt positions (indicatively fully closed 0°, 20°, 45°, 70°, and fully open 90°), which can be controlled via physical commands, the Home + Control app, or touchscreens, ensuring complete system integration
- As part of MyHome system, supports advanced automation, scenario management and return-state functionality
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
DRA (DIN-rail adaptor)
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
1
Number of buttons
3
With LED indication
Yes
With label area
No
With display
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Colour
White
RAL-number (similar)
9011
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
IP20
Min. depth of built-in installation box
55 mm
Width
36 mm
Height
105 mm
Depth
31 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
0-40 °C
Storage temperature (Min-Max)
-25-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
5 mA
Terminal marking indication
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
0.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Contains Batteries
No
Connected object
No
Operating method
SCS
With voice command
No
Programmable
Yes
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Shutter management
Documentation
2 documents
Instruction Use
LE15858AB | PDF (2.8 MB) | IT · EN · FR · DE · ES · NL · PT
Technical Sheet
ST-00002641-EN | PDF (751 KB) | EN
