Stop Arc Legrand

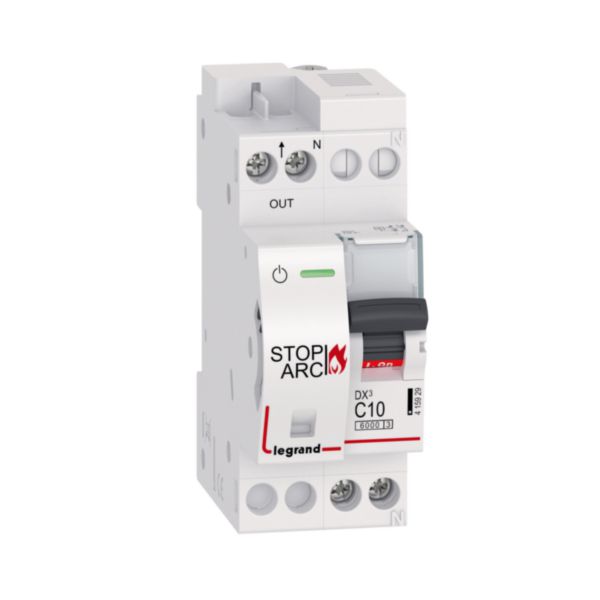

BTDIN Stop Arc with Mcb 1P+N In= 10A, Vn= 230/240Vac, Icn 6kA, curve C

LG-415929 | 3414971179547
BTDIN Stop Arc - electric arc detection device associated with a thermal-magnetic circuit breaker 1P+N with rated current of 10A, voltage 230/240Vac, Icn 6kA, curve C
Description

Arc fault detection circuit-breaker to protect wiring installations against overloads, short-circuits and arc faults. Can also be used to control and isolate the installation.

Product characteristics
  • Breaking capacity 6000A according to IEC 60898-1 standard for household installations. Tripping threshold in case of short-circuit between 50A and 100A (C curve between 5 In and 10 In)
  • Line connection on bottom side by screw terminals, with prong busbar, 16 mm² solid copper cables or 10 mm² stranded copper cables with lugs.Load connection on top side by screw terminals, with 16 mm² solid copper cables or 10 mm² stranded copper cables with lugs.
  • Protected against solid bodies larger than 12,5mm ("fingerproof"): IP20 according to IEC/EN 60529 standard.Maximum level of limitation of the let through energy (energy limitation class 3 according to IEC 60898-1 standard).
  • Can be equipped with Legrand DX3 auxiliaries : auxiliary contacts, shunt trip, overvoltage release, power overvoltage protection (POP).
  • This device complies with substance-restriction requirements and has been designed in an environmentally conscious process.
Recommendations / Restrictions
  • Recommended for 2P+E power sockets circuit protection in sleeping accommodation, premises constituting a fire risk due to the types of material processed or stored therein (barns, woodworking shops, paper mills, etc), premises constructed with combustible building materials (wooden buildings and houses), structures where fire spreads easily (tower blocks) and premises where irreplaceable goods might be in danger. In residential installations, they should ideally be installed on the bedroom and living room circuits. In the case of total refurbishment, they should play an active part in making the installation safe.
Products benefits
Installation
  • Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.
Usage
  • Fitted with a LED indicator allowing the identification of the status of the breaker. Mechanical indicator for identification of tripping due to arc fault.Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.On and OFF indication printed on the handle respectively on red and green backgrounds for an easy identification of the status of the MCB.
Advantages
  • Daily automatic test of the arc fault detection function.
Technical Characteristics
Release characteristic C
Number of poles 2
Rated current 10 A
Rated voltage 230 V
Rated short-circuit breaking capacity according to EN 60898 6 kA
Voltage type AC
Current limiting class 3
Frequency (Min-Max) 50-60 Hz
Concurrently switching neutral conductor Yes
Overvoltage category 3
Pollution degree 2
Width in number of modular spacings 2
Degree of protection (IP) IP20
