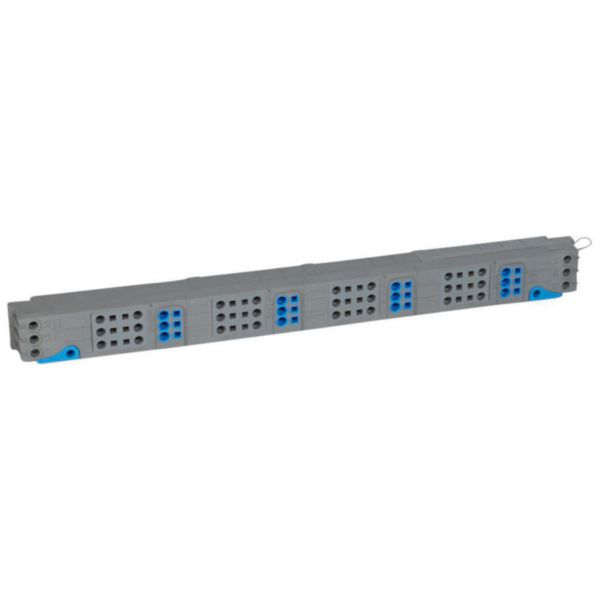

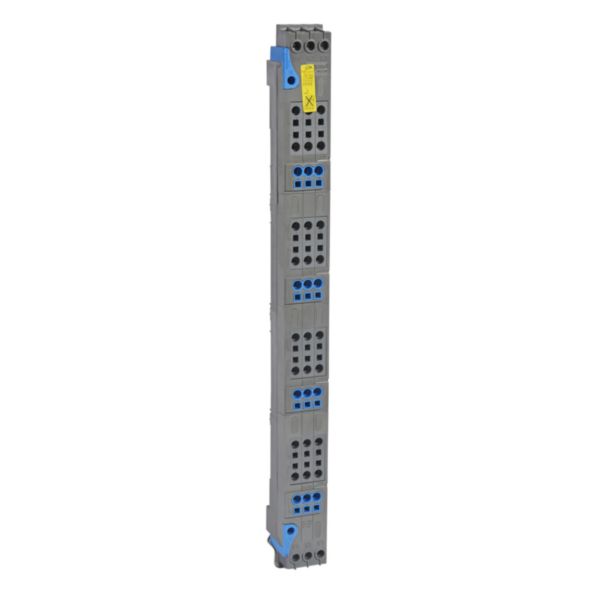

Terminal block of the vertical distribution - In= 125A
LG-405035
|
3245064050357
Technical Characteristics
Number of phases
3
Number of poles
36
Suitable for number of devices
8
Module width
150 mm
Cross section
50 mm²
Length
631 mm
Can be cut to size
No
Rated permanent current Iu
125 A
Type of electric connection
Other
Insulated
Yes
Rated surge voltage
2 kV
Conditioned rated short-circuit current Iq
0.63 kA
Max. rated operation voltage Ue
400 V
Rated short-time withstand current lcw
6 kA
Suitable for devices with N-conductor
Yes
Suitable for devices with auxiliary switch
No
Colour
Grey
Operating / setting temperature (Min-Max)
-20-50 °C
Storage temperature (Min-Max)
-40-70 °C
Busbar type supplied
Vertical
