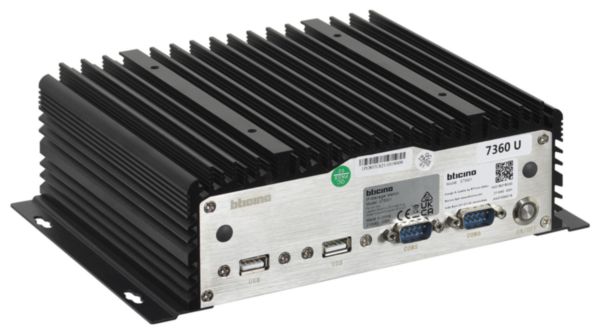

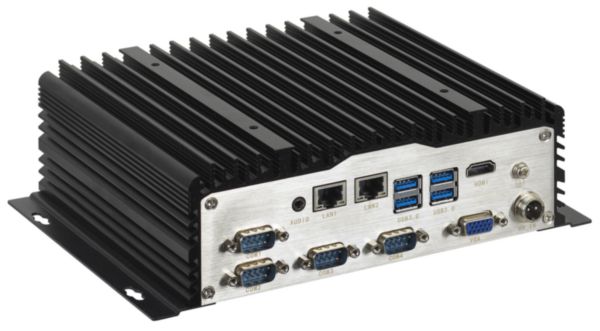

Hotel gateway
LG-048909
|
3414972129602
Description
Room datas are also accessible remotly through a network connection and can be integrated with third parties
Product characteristics
- Room Supervision dashboard directly installed
- Two IP connection for an internal and external connectivity
- Can be connected to Eliot cloud for firmware updates
Products benefits
Advantages
- Give a remote access for maintenance
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Model
Multiple interface
Mounting method
Other
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Voltage type
AC
Protocol
TCP/IP
Provider dependent
Yes
Web-Server
Yes
Radio interface
No
IR interface
No
Degree of protection (IP)
IP44
Width
129 mm
Height
93 mm
Depth
52 mm
degree of impact strength (IK)
IK02
Operating / setting temperature (Min-Max)
10-30 °C
Storage temperature (Min-Max)
0-35 °C
Type of load
Not applicable
Halogen free
Yes
Connection type
Screwed terminal
Number of distribution blocks
0
Terminals capacity (Min-Max)
0.1-1.5 mm²
Connection type
Other
Fitted with USB plug
Yes
Contains Batteries and/or Accumulator
No
Addressable
Yes
Connected object
Yes
Programming way
Remote
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Documentation
4 documents
Instruction Use
LE13121AB | PDF (999 KB)
Technical Guide
RA00221AA_EN | PDF (7.5 MB) | EN
Installation Guide
RA00228AA_EN | PDF (7.5 MB) | EN
Technical Sheet
ST-00001680-EN | PDF (374 KB) | EN
