KNX Legrand

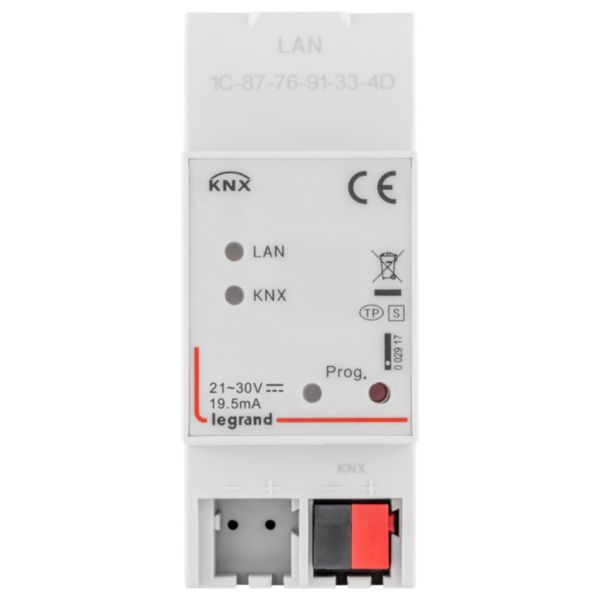

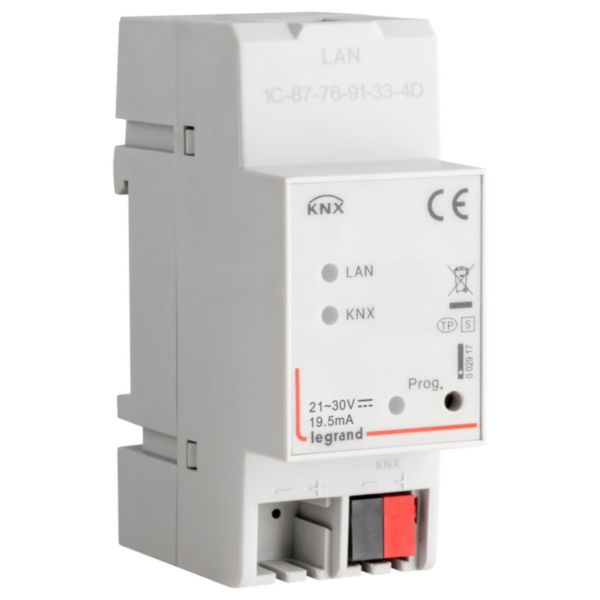

IP/KNX router

LG-002917 | 3414972816175
This device can be used as a line or backbone coupler, providing a data connection with galvanic isolation between the upper KNXnet/IP line and the lower KNX bus line. It can also be used as a programming interface with KNX-compatible tools, providing up to 5 physical addresses for IP tunneling. Technical features: - supports messages up to 55 bytes long. - can be used as a line coupler or an area coupler. - through the tunneling protocol, it offers a connection point for the ETS programming software (or any other tool for enabling commissioning and monitoring). - high internal communication buffer capacity to withstand data traffic overload. - supports KNXnet/IP, ARP, ICMP, IGMP, HTTP, UDP/IP, TCP/IP, and DHCP standards. - powered by KNX bus at 29V DC. - DIN rail installation. - dimensions: 2 DIN modules
Description

can act as main line or backbone coupler. Links a diffent KNX network to each other via the IP infrastructure

Product characteristics
  • 2 DIN modules
Products benefits
Installation
  • KNX standard
Technical Characteristics
Bus system KNX Yes
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems None
Radio frequency bidirectional No
Model Interface KNX Powernet
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 36
Demounting protection Yes
With LED indication Yes
Updateable Yes
Operating voltage (Min-Max) 21-30 V
Voltage type DC
Protocol TCP/IP
Provider dependent Yes
Visualization Yes
Web-Server No
Radio interface No
IR interface No
Degree of protection (IP) IP20
Width 36 mm
Height 64.1 mm
Depth 90 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-45 °C
Storage temperature (Min-Max) -25-55 °C
Supply current (Min-Max) 0.0155-0.0195 A
Terminal marking indication Yes
Type of load Not applicable
Halogen free Yes
Connection type Other
Label space/information surface No
Fitted with USB plug No
Contains Batteries and/or Accumulator No
Addressable Yes
Connected object No
Standby consumption 19.5
