New Legrand

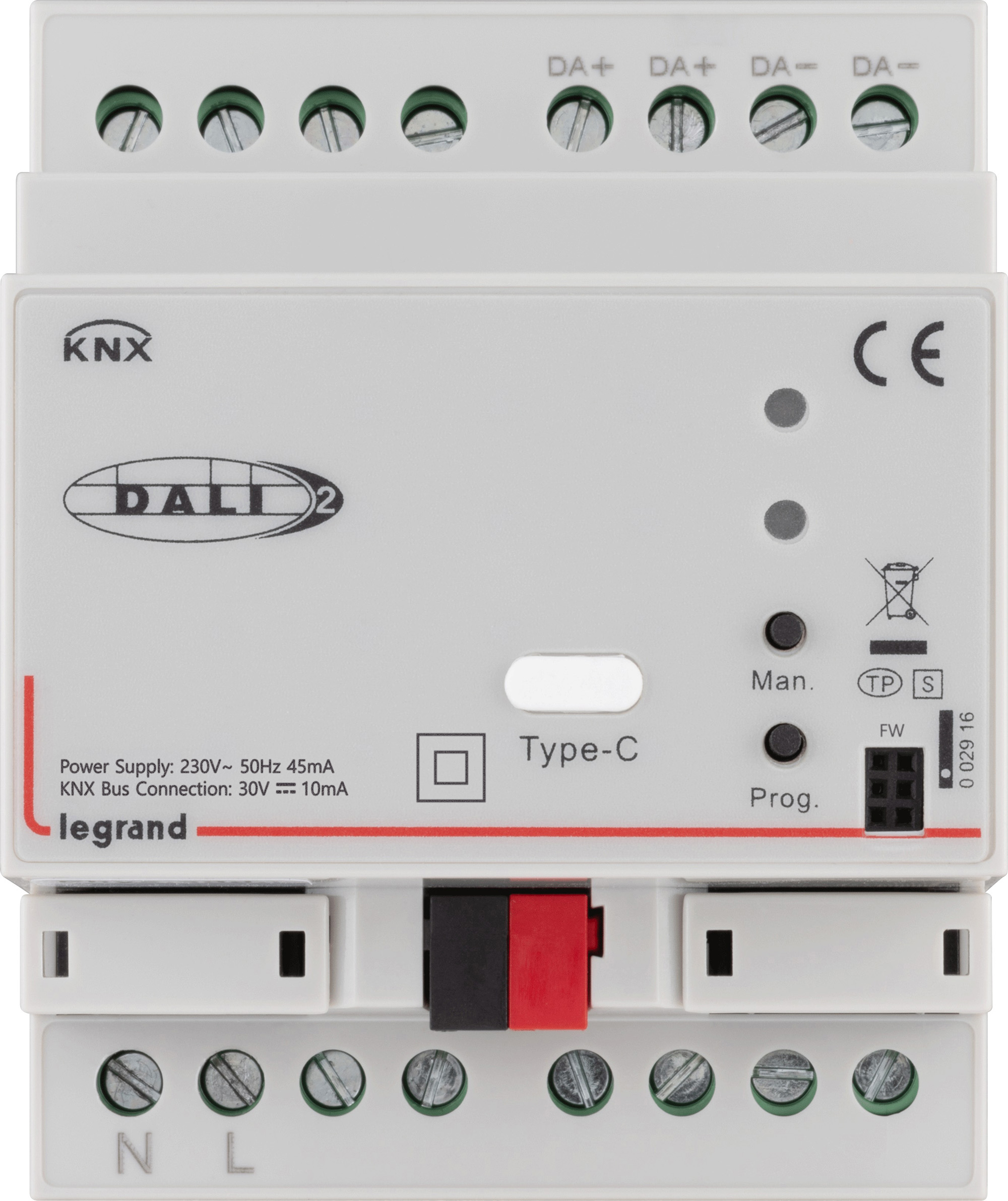

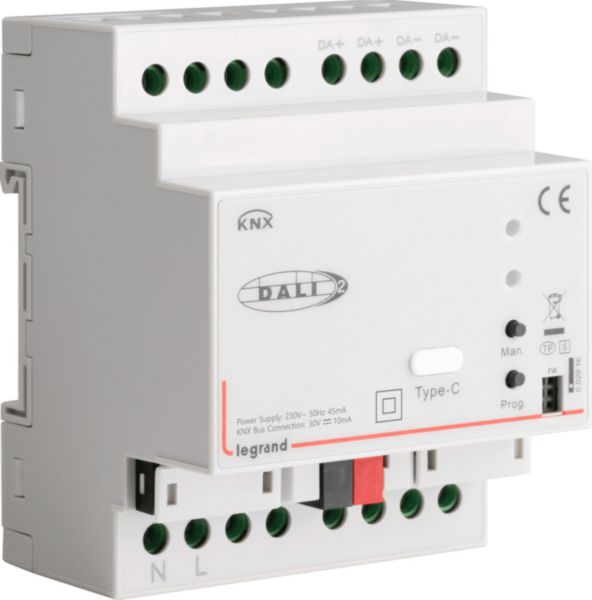

1 channel DALI bus (64 DALI drivers max)

LG-002916 | 3414972965323
1 channel DALI bus (64 DALI drivers max) to control up to 64 unicast commands and/or 16 group commands. Choice between KNX scenes or DALI scenes (16 max). DALI software allows modification of driver parameters (min/max/power/on value/fade, etc.). Each channel can be controlled by a detector and/ or a BUS/KNX command color temperature control from the KNX BUS (up to 10 mA) - 4 DIN modules
Description

Modular DALI-2 KNX gateway with USB-C interface for fast setup. Controls 64 luminaires and 16 scenes via ETS. Offers 64 unicast and 16 group commands, plus color temperature control.

Product characteristics
  • Certified DALI-2, 1 channel, 4 DIN modules.
  • Connects up to 64 DALI devices.
  • Control switching, dimming, brightness value and color temperature.
  • Modular mounting on 35 mm DIN rail according to EN 60 715.
  • It uses <10mA from the KNX bus.
Recommendations / Restrictions
  • Indoor use only, operating temperature -5°C to +45°C, humidity 5%–95% RH
Products benefits
Installation
  • Connected directly to the KNX bus and the 230 V AC power supply. Uses a DALI commissioning tool via USB-C.
Usage
  • The Legrand+DALI configurator allows addressing and assigning groups and scenes to DALI devices. It manages lighting with ON/OFF functions, dimming and adjustable white.
Advantages
  • Allows individual and group control of DALI devices, with support for up to 16 DALI scenes and 64 KNX scenes.
  • The USB-C interface ensures reliable and fast DALI commissioning by avoiding KNX bus interference.
  • Allows modification of DALI device parameters (min/max power on/off, status, and dimming slope).
Technical Characteristics
Bus system KNX Yes
Bus system KNX-RF (Radio Frequency) No
Bus system KNX Secure No
Bus system KNX Secure-RF (Radio Frequency) No
Bus system radio frequency No
Bus system LON No
Bus system Powernet No
Other bus systems DALI
Radio frequency bidirectional No
Number of linkable devices 64
Model Dimming actuator
Mounting method DRA (DIN-rail adaptor)
Width in number of modular spacings 4
Substation input No
Local operation/hand operation Yes
With LED indication No
Number of outputs 1
Output power (Min-Max) 2.4-2.7 W
Power boost suitable No
Max. control current 150 mA
Suitable for constant current No
Voltage (Min-Max) 16-18 V
Parallel-service possible No
Degree of protection (IP) IP20
Compatible with Casambi No
Width 72 mm
Height 90 mm
Depth 64 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) -5-45 °C
Storage temperature (Min-Max) -25-55 °C
Mandatory neutral Yes
Colour Grey
Halogen free Yes
Connection type Screwed terminal
Cable section (Min-Max) 0.5-1.5 mm²
Addressable Yes
Connected object No
Operating method DALI, KNX
Application store for download Not applicable
With voice command No
Programmable Yes
Connectable by Internet box No
Product use function Lighting management
