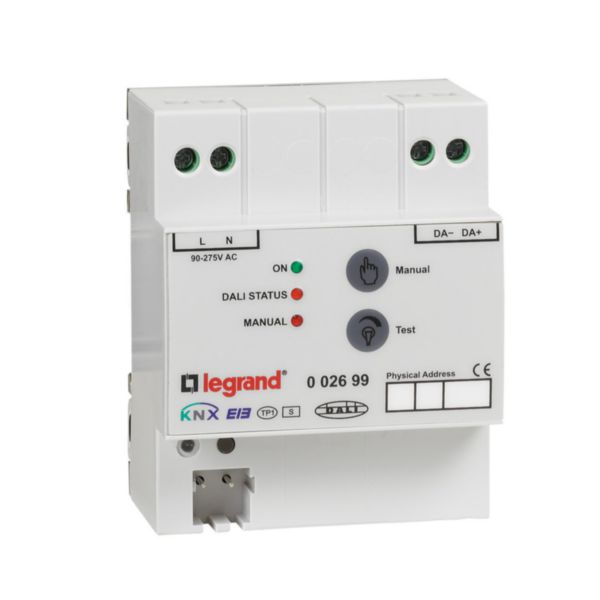

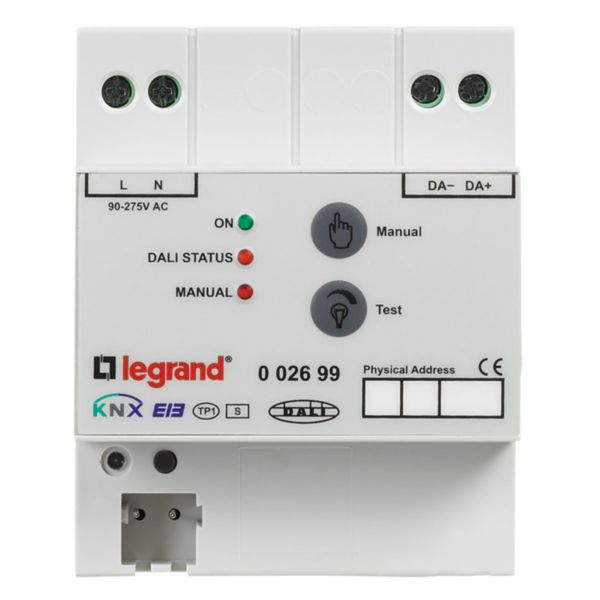

KNX/DALI gateway
LG-002699
|
3414972052382
Description
KNX/DALI gateway operating between KNX bus and DALI bus to individually control each DALI load (up to 64 DALI devices)
Product characteristics
- 1 output DALI bus (64 DALI devices max)
- DIN 4 modules
- Mains voltage 110/230VAC - 50/60Hz
- Power supply from KNX bus (< 10mA)
- Individual control DALI loads (64 max) & 16 lighting scenes
Recommendations / Restrictions
- Configuration through ETS tool from KNX association and dedicated DALI Commissioning Tool for DALI operations (addressing, grouping etc.)
Products benefits
Installation
- Connected with the BUS/KNX cable
Usage
- Monitoring Fault status of DALI devices using different KNX group objects
Advantages
- Possibility to support up to 8 DALI sensors for internal corridor and constant light level control on DALI groups transmitting current presence statuses and measured brightness values on the KNX bus
- Functional and battery life tests for DALI compliant emergency lighting fixtures to be sent through KNX
Technical Characteristics
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequency bidirectional
No
Model
Dimming actuator
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
4
With bus connection
Yes
Bus module detachable
No
Substation input
No
Local operation/hand operation
Yes
With LED indication
Yes
Number of outputs
1
Power boost suitable
No
Type of load
Universal
Max. control current
100 mA
Voltage (Min-Max)
85-300 V
Parallel-service possible
No
Frequency (Min-Max)
50-60 Hz
Degree of protection (IP)
IP20
Compatible with Casambi
No
Width
72 mm
Height
90 mm
Depth
58 mm
Operating / setting temperature (Min-Max)
-5-45 °C
Storage temperature (Min-Max)
-25-55 °C
Mandatory neutral
No
Colour
Grey
Halogen free
Yes
Connection type
Screwed terminal
Cable section (Min-Max)
0.5-3.31 mm²
Addressable
Yes
Operating method
KNX
