HT35Bm IME

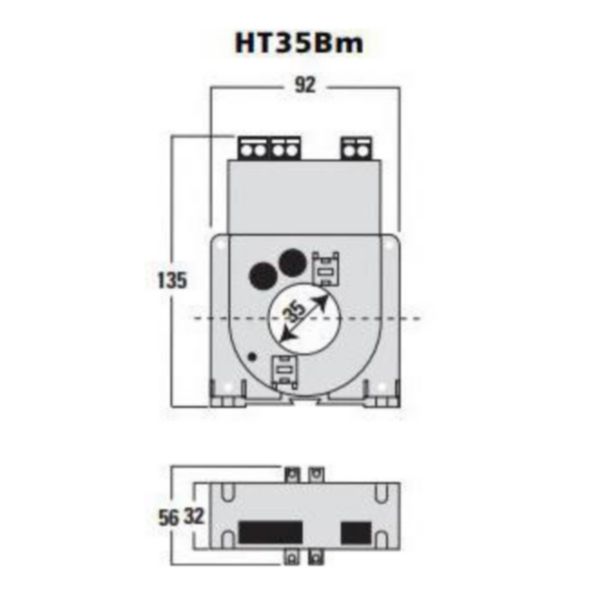

HT35Bm - Current transformer with Hall effect built-in transducer

IM-HT1BM1027 | 8032826042614
HT35Bm - Current transformer with Hall effect built-in transducer (Passing cable window Diameter 35mm) - Output: 4÷20mA - Current: 10/20/30/40/50/60/70/80/90/100A (selectable) - Aux: 80÷270Vac
Technical Characteristics
Model Other
Rated primary current 100 A
Rated secondary current 0.02 A
Accuracy class 1
Height opening (Min-Max) 35-35 mm
Width opening (Min-Max) 35-35 mm
Opening diameter 35 mm
Secondary connection Screw connection
Number of primary inputs 1
Documentation
1 documents
Technical Sheet
NT-763 | PDF (322 KB) | IT · EN
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
