  5. IM-IF4C001
  • Pulse concentrator
IF4C IME

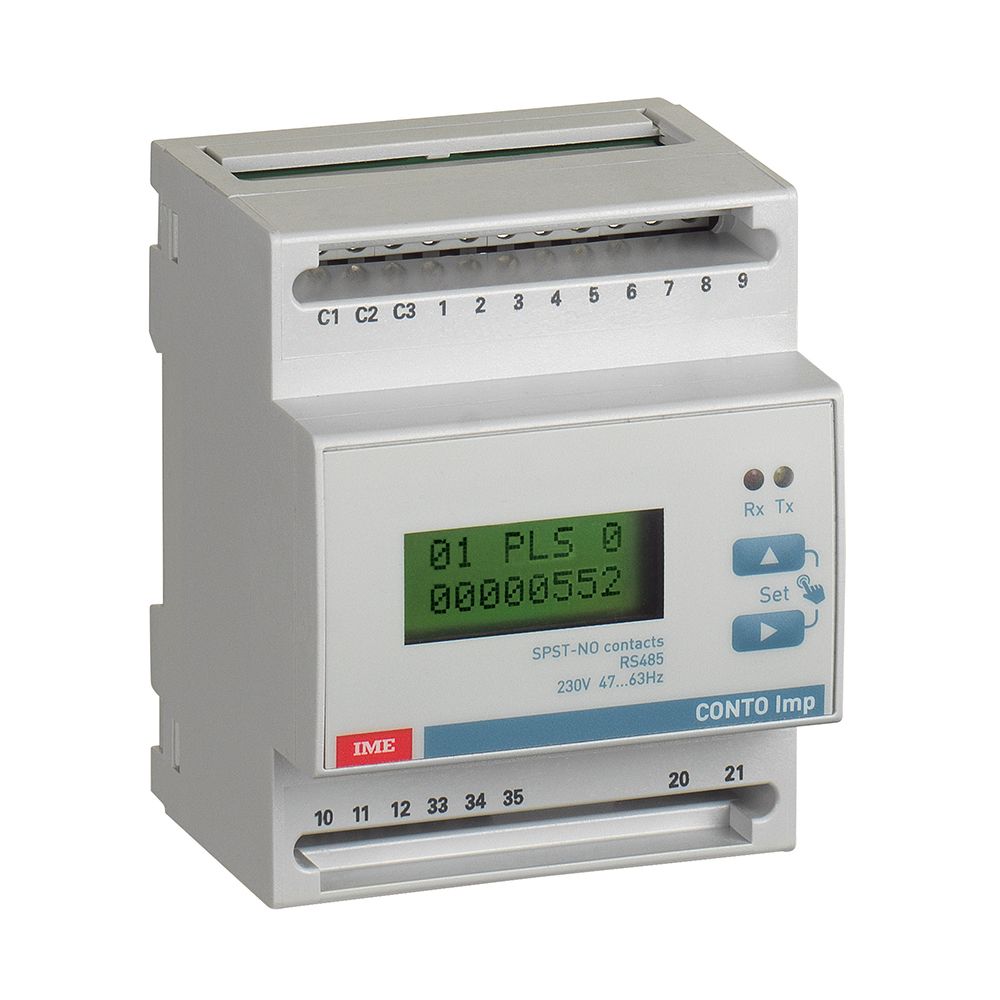

Pulse concentrator

IM-IF4C001 | 8032826039768
Pulse concentrator - 4 modules - Auxiliary supply: 230Vac - Output: RS485, protocol JBUS/MODBUS RTU - 12 inputs from potential-free contacts or the possibility of selecting 6 inputs from emitter devices
Technical Characteristics
Transmission rate 19.2 kBit/s
Service primary side Other
Connection type primary side Other
Service secondary side RS-485
Connection type secondary side Other
Bi-directional No
Overcurrent protection No
Galvanic separation Active
Nominal electricity consumption 21 mA
Documentation
4 documents
Instruction Use
10782220FR | PDF (1.3 MB) | EN · FR
Technical Guide
MAN_IDM_2.02.00_EN | PDF (2.4 MB) | EN
Technical Sheet
NT-783 | PDF (1 MB) | IT · EN
Technical Sheet
NT783FR | PDF (414 KB) | EN · FR
2 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
Trade Guide
PR125FR | PDF (131 KB) | EN · FR
1 documents
Software
IME_IDM_CONFIGURATOR_SETUP_2.02.00 1 | EXE (14.1 MB) | FR · EN · IT
