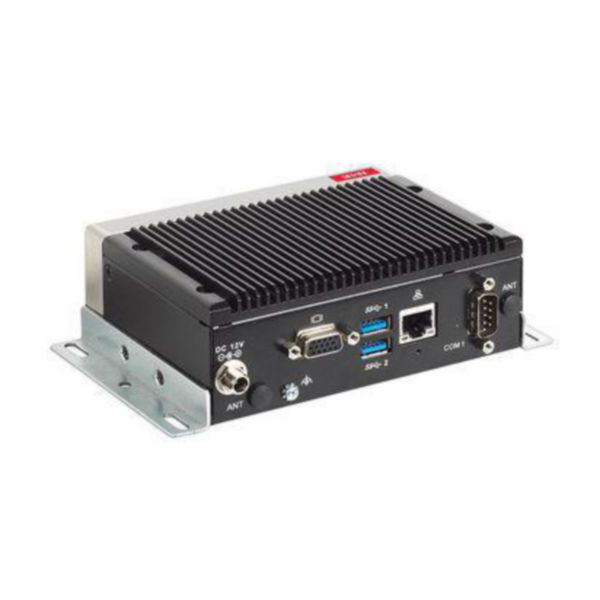

WebServer
IM-SXWS255
|
8032826210082
Description
The WebServer manages up to 255 measuring devices and allows the display of measurements via web pages
Product characteristics
- 12 VDC ± 10% power supply, via external power supply (supplied with the Web Server).
- Equipped with ModBus and ETH connectors
- Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.
Products benefits
Installation
- Through a clear and intuitive graphic layout, among other functions, it is possible to remotely view the states, the electrical quantities, remotely control the activation modules and manage the alarms.
Technical Characteristics
Supply voltage DC (Min-Max)
12-12 V
Voltage type (supply voltage)
DC
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for SERCOS
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
Yes
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
Radio standard GPRS
No
Radio standard GSM
No
Mobile communications standard 3G (UMTS)
No
IO link master
No
System accessory
Yes
Degree of protection (IP)
IP2X
With potential separation
Yes
Fieldbus connection over separate bus coupler possible
No
Suitable for rail mounting
No
Wall mounting/direct mounting
Yes
Front built-in possible
No
Rack-assembly possible
Yes
Suitable for safety functions
Yes
SIL according to IEC 61508
None
Performance level according to EN ISO 13849-1
None
Appendant operation agent (Ex ia)
No
Appendant operation agent (Ex ib)
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Width
133.4 mm
Height
104.2 mm
Depth
43.1 mm
