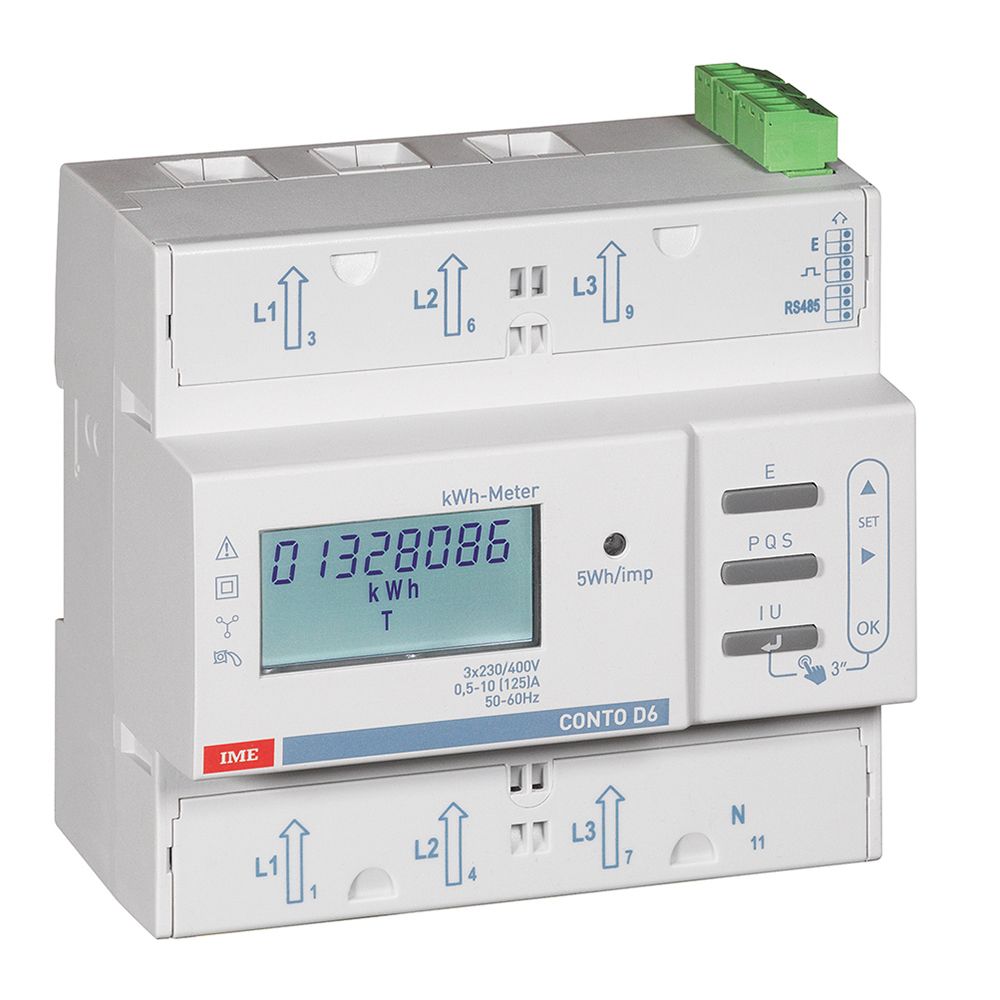

Energy meter Conto D6-Pd MID
IM-CE6DMID52UTF
|
8032826514548
Description
The device measures and displays active and reactive energies positive and negative, it also has a dual tariff or pulse input.
Product characteristics
- Class B EN50470 (MID)Class 1 EN/IEC 62053-23Double tariffs
Products benefits
Installation
- Compact in 6 DIN modules
Technical Characteristics
Type of meter
Electronic
Nominal current (In)
10 A
Max. current (Imax)
125 A
Frequency (Min-Max)
49-51 Hz
Accuracy class
B
Pole type
Three conductor/four conductor
Model
Direct measurement
Energy type
Effective power and reactive power
Suitable for
Purchase
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
No
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
Electrical
Pulse type
S0
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
6
Width
107.2 mm
Depth
65.6 mm
Height
100 mm
Type of interface
None
EEC40 signature
Yes
With lock code
Yes
Number of positions total (counter)
8
Degree of protection (IP)
IP54
Degree of protection (NEMA)
2
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-25-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Terminal marking indication
Yes
RAL-number
7035
Halogen free
Yes
Prewired
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1-50 mm²
Label space/information surface
Yes
