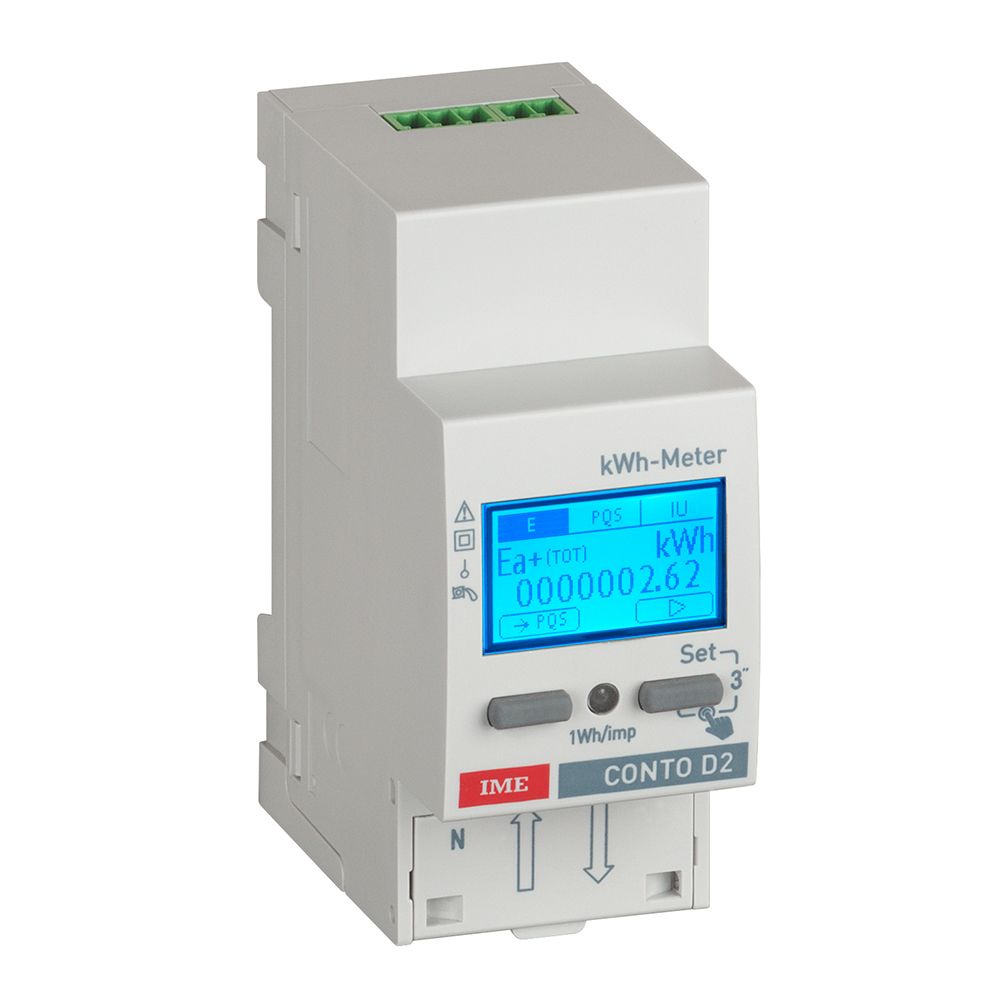

Energy meter Conto D2 MID
IM-CE2DF3DTMID
|
8032826514395
Description
Electrical counter of active and reactive energy consumed by a single-phase circuit downstream the distribution protection. This device measures directly all the electrical values of the circuit in a distribution board.
Product characteristics
- Direct connection up to 63A 1P.
- Communication: Modbus RS 485.
- Double tariff or Pulse input to collect other meter (gas, water, electrical meters).
- MID Certified.
- Bidirectional measure of production and consumption energies.
Products benefits
Installation
- Simple installation by direct connection up to 63A without the use of a current transformer. Limited location due to its compact size of 2 modules. Easy connection of communication thanks to removable connectors. One input connector for double tariff or Pulse input to collect water or gas meters without using added concentrator device.
Usage
- Backlit display and simple access to easy reading of data. Pre-visualization of parameters. Settings mode protected by user code Bidirectional measure of production and consumption energies
Advantages
- Measure of run hours on each tariff.
Technical Characteristics
Type of meter
Electronic
Nominal current (In)
10 A
Max. current (Imax)
63 A
Nominal voltage (Un) N-L (Min-Max)
197-265 V
Frequency (Min-Max)
49-61 Hz
Accuracy class
B
Pole type
Single phase
Model
Direct measurement
Energy type
Effective power and reactive power
Suitable for
Purchase/supply
Tariff type
Two-tariff
Tariff control
External
Measurement type load profile
No
Escapement mechanism
Yes
Calibrated
Yes
Approval
Measuring Instruments Directive
Pulse output
None
Type of indication
Digital
Mounting method
DRA (DIN-rail adaptor)
Width in number of modular spacings
2
Width
35.8 mm
Depth
66 mm
Height
92.4 mm
Type of interface
RS-485
With lock code
Yes
Number of positions total (counter)
9
Degree of protection (IP)
IP54
Operating / setting temperature (Min-Max)
-25-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Prewired
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1-16 mm²
Label space/information surface
No
Connected object
No
