Tema IME

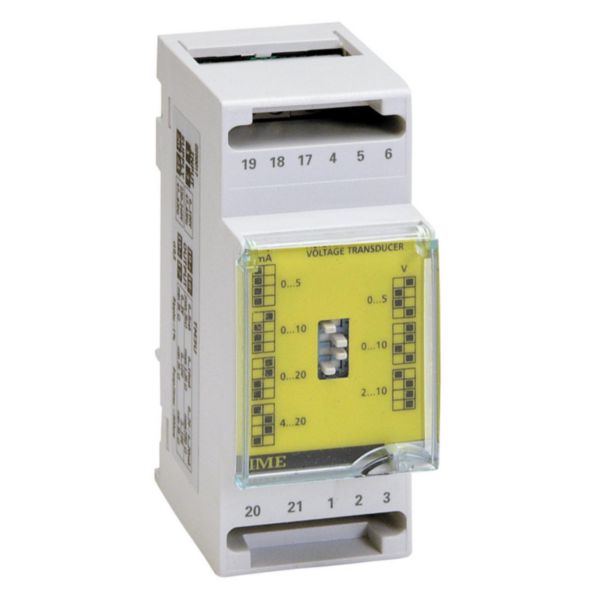

Tema U4e - TRMS single phase alternating voltage transducer

IM-TM4UH20 | 8032826155680

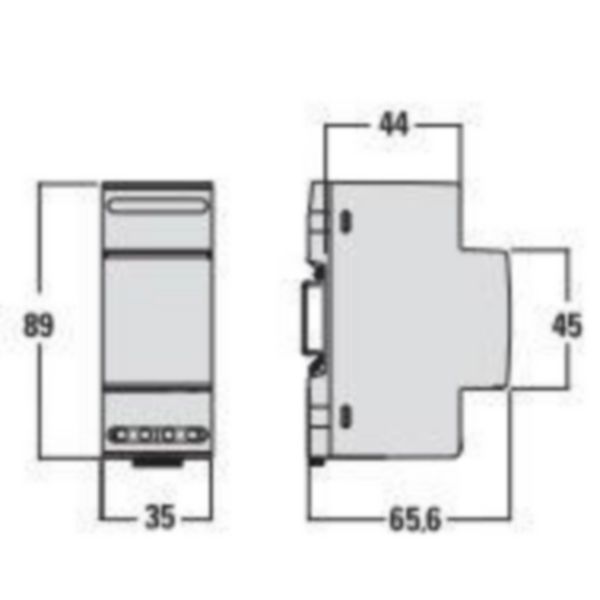

Tema U4e - TRMS single phase alternating voltage transducer with selectable output - Dimension: 2 DIN modules - Input: 110V - Output: 0÷5 mA/0÷10 mA/0÷20mA/4÷20 mA/0÷5 V/0÷10 V/2÷10V (selectable) response time <=100 ms - Aux: 20÷150 Vdc/48 Vac
Technical Characteristics
Initial value measuring range voltage 0 V
End value measuring range voltage 600 V
Frequency rated current 50 Hz
Type of analogy output Other
Mounting method DIN rail (top hat rail) 35 mm
Integrated configuration function Yes
With switching output No
Documentation
1 documents
Technical Sheet
NT629-00 | PDF (509 KB) | EN · FR · IT
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
