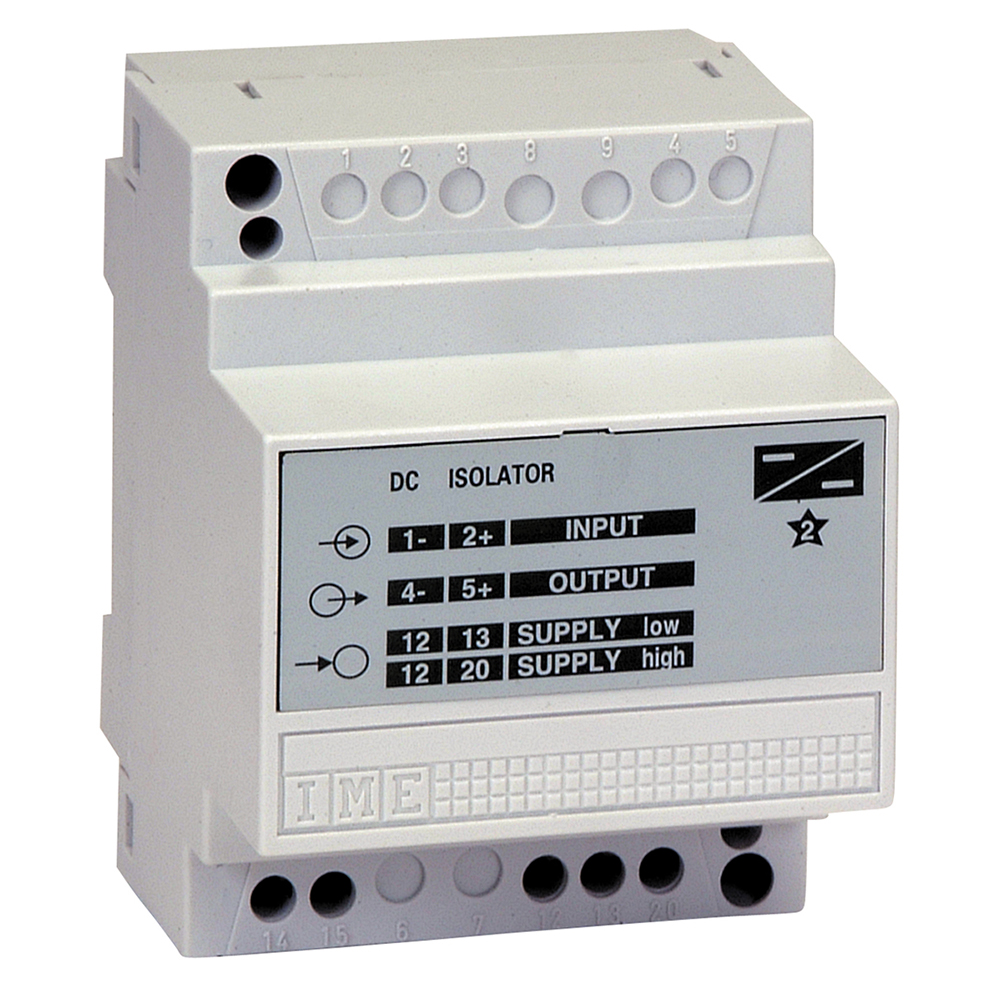

Tema SG - Galvanic separator DC - Input: 0÷20mA - Output: 0÷5mA - Aux: 150÷250 Vdc
IM-TM3GL32
|
8032826154676
Technical Characteristics
Model
Through-feed current converter
Rated primary current
0.02 A
Rated secondary current
0.005 A
Accuracy class
0.5
Calibrated
Yes
With contact protection
Yes
Number of primary inputs
1
Width
70 mm
Height
89.5 mm
Depth
69 mm
Degree of protection (IP)
IP51
Operating / setting temperature (Min-Max)
-10-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
DC
Nominal voltage (Min-Max)
150-250 V
Terminal marking indication
Yes
Halogen free
Yes
Prewired
No
