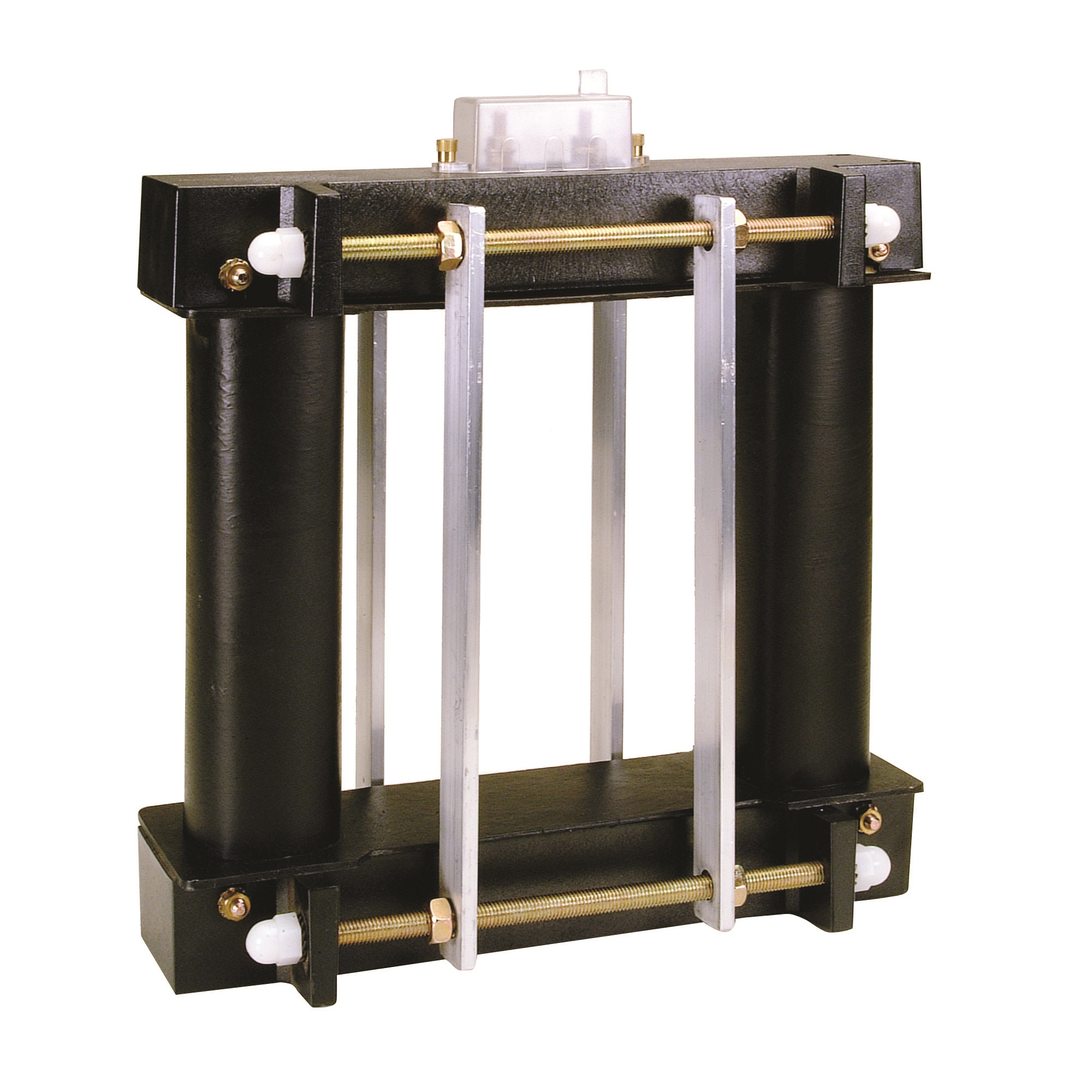

TAU101P - Current transformer for protection - Cable/passing bar: 120x125mm - Ratio: 2500/5A
IM-TAXC50D250
|
8032826151224
Technical Characteristics
Model
Attachable current transformer
Rated primary current
2500 A
Rated secondary current
5 A
Rated secondary apparent power
1.5 VA
Power consumption
1.5 W
Accuracy class
5
With contact protection
Yes
Snap mounting
Yes
Secondary connection
Screw connection
Number of primary inputs
1
Width
257 mm
Height
221 mm
Depth
110 mm
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
-25-50 °C
Storage temperature (Min-Max)
-40-85 °C
Voltage type
AC
Frequency (Min-Max)
47-63 Hz
Terminal marking indication
Yes
Halogen free
Yes
Prewired
No
