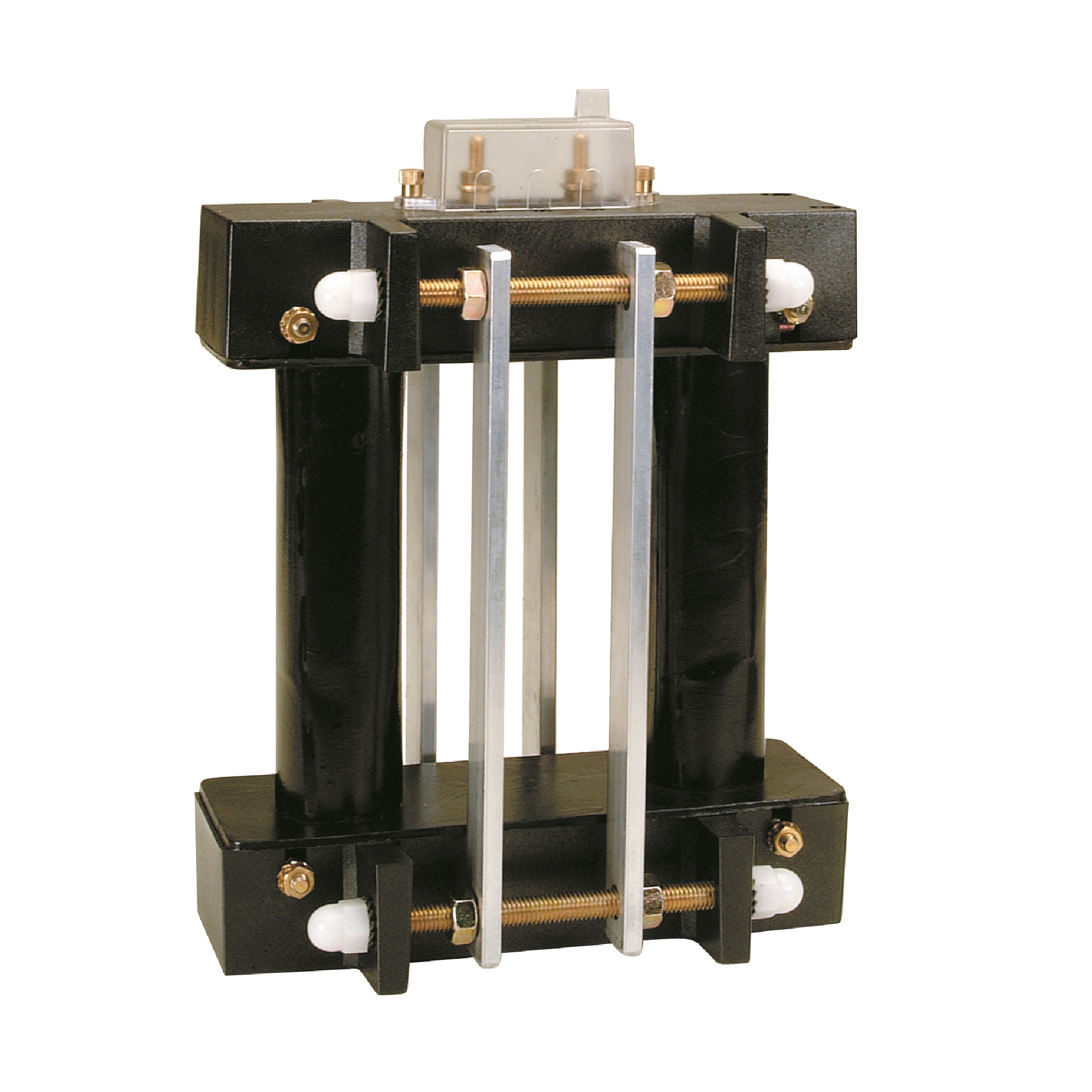

TAU91P - Current transformer for protection - Cable/passing bar: 55x165mm - Ratio: 2000/1A
IM-TAXB10D200
|
8032826151026
Technical Characteristics
Model
Attachable current transformer
Rated primary current
2000 A
Rated secondary current
1 A
Rated secondary apparent power
3 VA
Power consumption
3 W
Accuracy class
5
With contact protection
Yes
Snap mounting
Yes
Secondary connection
Screw connection
Number of primary inputs
1
Width
177 mm
Height
261 mm
Depth
110 mm
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
-25-50 °C
Storage temperature (Min-Max)
-40-85 °C
Voltage type
AC
Frequency (Min-Max)
47-63 Hz
Terminal marking indication
Yes
Halogen free
Yes
Prewired
No
