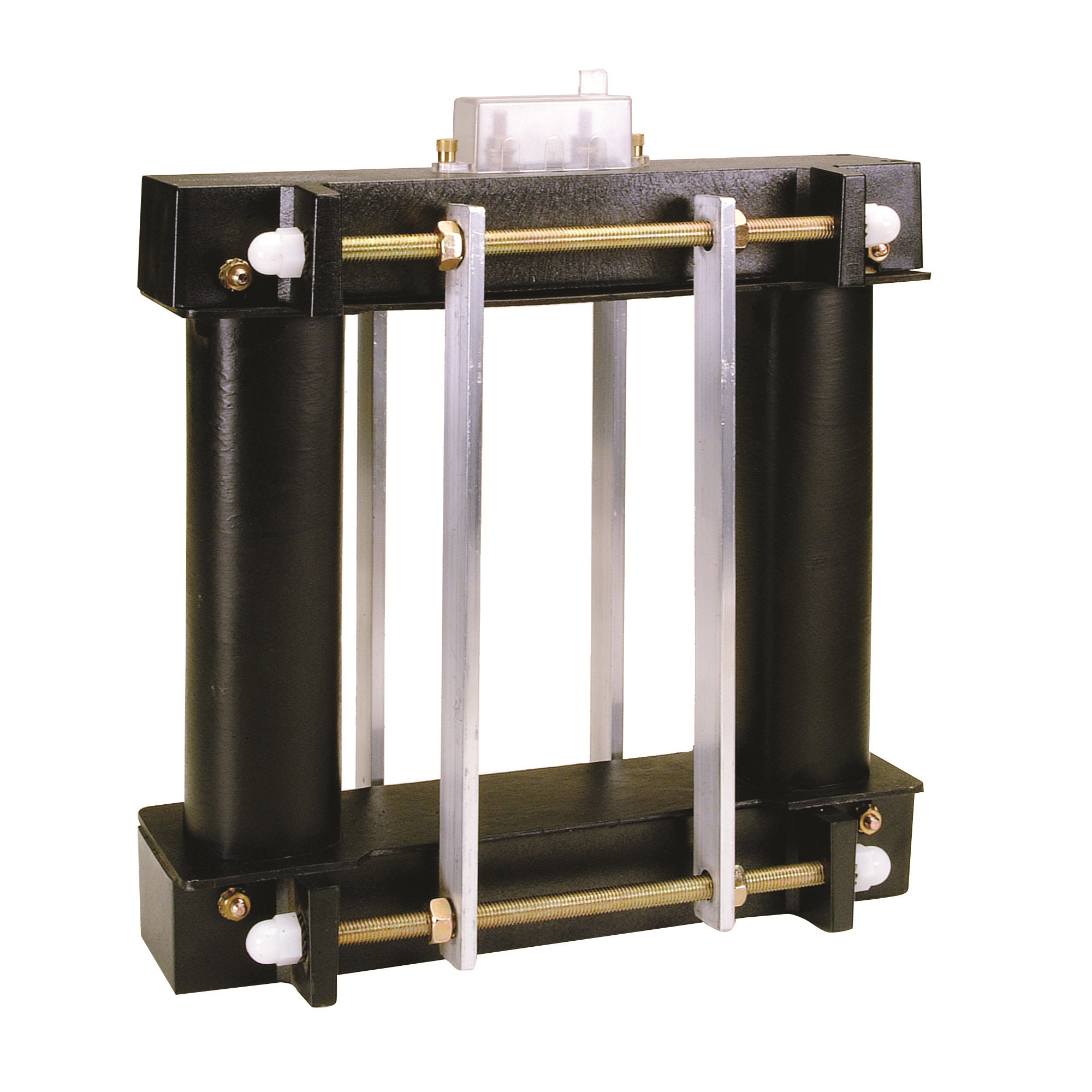

TAU11 - Current transformer - Cable/passing bar: 120x165mm - Ratio: 2000/5A
IM-TAUD50D200
|
8032826148989
Technical Characteristics
Model
Attachable current transformer
Rated primary current
2000 A
Rated secondary current
5 A
Rated secondary apparent power
30 VA
Power consumption
30 W
Accuracy class
0.5
Overcurrent limiting factor
FS 5
With contact protection
Yes
Snap mounting
Yes
Secondary connection
Screw connection
Number of primary inputs
1
Width
257 mm
Height
261 mm
Depth
110 mm
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
-25-50 °C
Storage temperature (Min-Max)
-40-85 °C
Voltage type
AC
Frequency (Min-Max)
47-63 Hz
Terminal marking indication
Yes
Halogen free
Yes
Prewired
No
