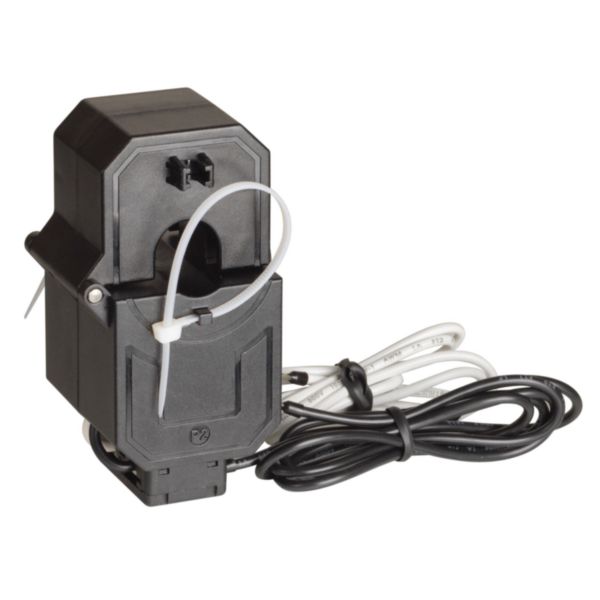

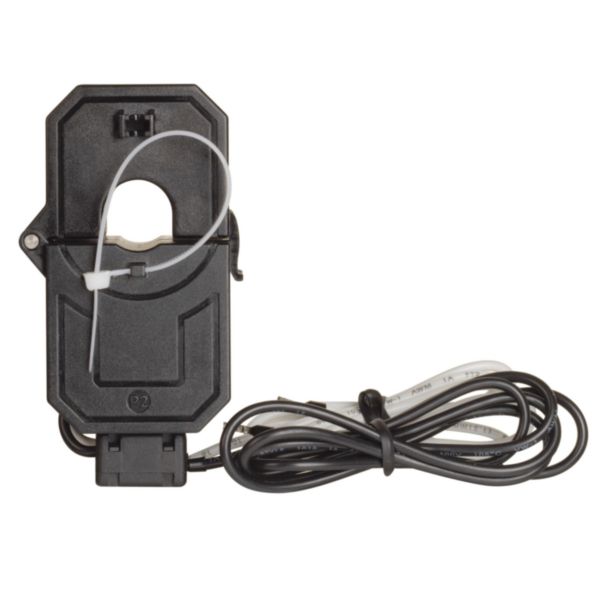

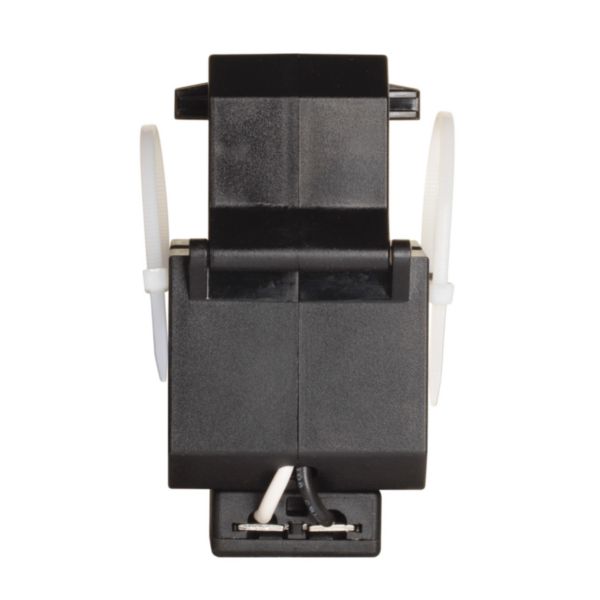

Split core current transformer 150/5A
IM-TAMS50C150
|
8032826515880
Technical Characteristics
Model
Attachable current transformer
Rated primary current
150 A
Rated secondary current
5 A
Rated secondary apparent power
1 VA
Power consumption
1 W
Accuracy class
1
Overcurrent limiting factor
FS 10
Calibrated
Yes
With contact protection
No
Height opening (Min-Max)
0-18.5 mm
Width opening (Min-Max)
0-18.5 mm
Opening diameter
18.5 mm
Snap mounting
No
With copper rail
No
Secondary connection
Cable
Number of primary inputs
1
Width
61.4 mm
Height
110.1 mm
Depth
65.2 mm
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-25-40 °C
Storage temperature (Min-Max)
-30-60 °C
Voltage type
AC
Nominal voltage (Min-Max)
220-720 V
Frequency (Min-Max)
47-63 Hz
Terminal marking indication
Yes
Halogen free
Yes
Prewired
Yes
