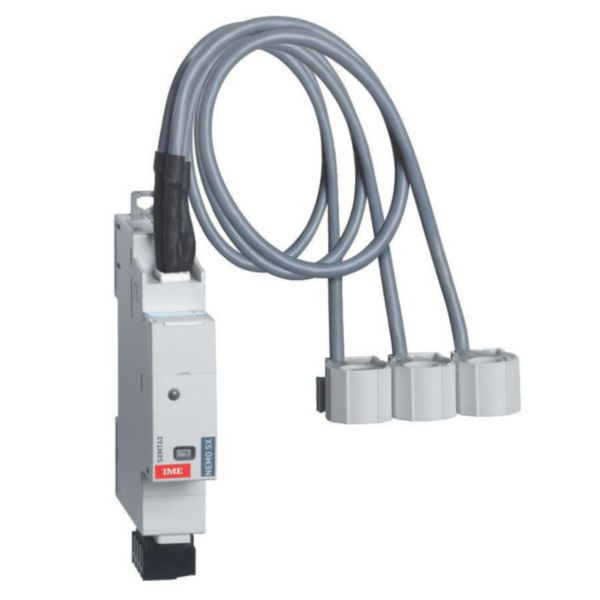

3-wire measure three-phase module up to 63A for Nemo SX
IM-SXMT63
|
8032826209901
Description
DIN measurement module with integrated Rogowski probes dedicated to three-phase lines up to 63A
Product characteristics
- System power supply at 12Vdc (Purchased with NEMO SX communication cable)
- Imax: 63A A: 110 ÷ 500 V ~ (phase / phase) A: 65 ÷ 290 V ~ (phase / neutral)
- Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.
Products benefits
Installation
- Equipped with 3 Rogowski probes (1 per phase) it allows to read the main electrical quantities
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Energy meter
Connection type
Convertible
Reactive power
Yes
S0 impulse interface
None
Tariff switch
No
Accuracy class
0.5
