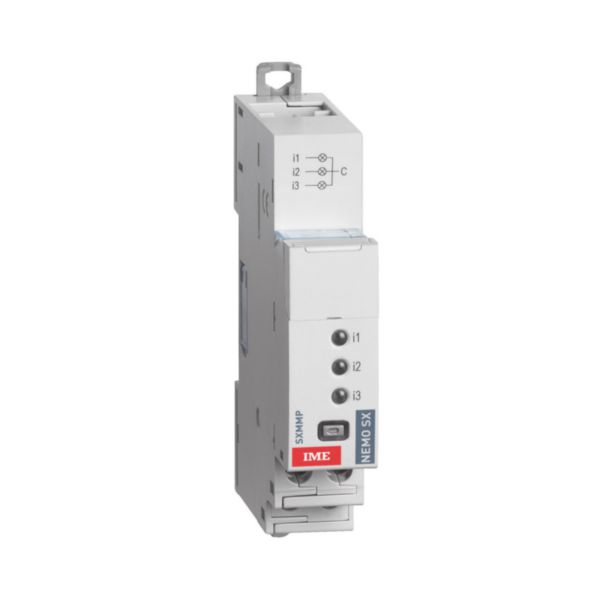

Pulse concentrator module for Nemo SX
IM-SXMIMP
|
8032826209932
Description
Pulse counter module. It allows you to read and manage the pulses generated by gas, water and similar meters
Product characteristics
- System power supply at 12Vdc (Purchased with NEMO SX communication cable)
- 3 potential free SPST-NO contact inputs. It has a clamp for the common.
- Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.
Products benefits
Installation
- It concentrates and stores the pulses coming out of the electricity, gas, oil, water, compressed air or multifunction measurement units
Technical Characteristics
Power loss
0.288 W
Voltage type
DC
Model
DIN rail
Suitable for distribution board
Yes
Width
17.8 mm
Height
94.8 mm
Width in number of modular spacings
1
Measuring mechanism
Digital
Number of digits
3
With reset function
Yes
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Documentation
7 documents
Technical Sheet
IDP000167EN_05.DOCX | DOCX (4.9 MB) | EN
Instruction Use
IDP000167EN_06 | PDF (2.3 MB) | EN
Instruction Use
LE10292AAFR | PDF (2 MB) | EN · FR
Technical Sheet
NT-910_EN | PDF (1.3 MB) | EN
Technical Sheet
NT910FR | PDF (1.9 MB) | EN · FR
Instruction Use
RA00163CB_I_FR | PDF (4.9 MB) | EN · FR
Installation Guide
USER MANUAL NEMO SX EN | ZIP (4.6 MB) | EN
2 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
Trade Guide
PRSXMIMPFR | PDF (173 KB) | EN · FR
1 documents
Software
IME_NEMO_SX_CONFIGURATOR_SETUP_2.01.00 | EXE (13.2 MB) | FR · EN
