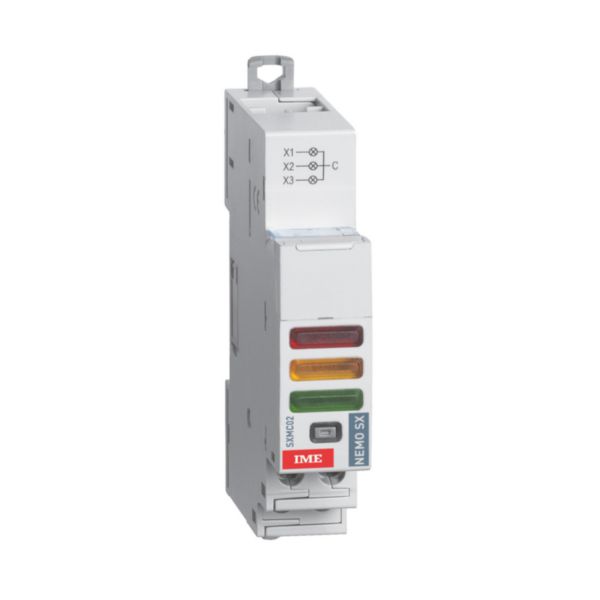

Name: Nemo SX - LED module Equipped with 3 LED Lights: green, red and yellow
Brand: BTicino
SKU: IM-SXMC02
Availability: InStock

Description

Through the on-board microswitches it is possible to configure the information to be returned as the open, closed or tripped state of the protection devices

Product characteristics

System power supply at 12Vdc (Purchased with NEMO SX communication cable)
3 Inputs from NO potential free contact. The status of the relevant load to be monitored is displayed via LED on the front panel
Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.

Products benefits

Installation

It allows to have a clear indication on the status of a circuit, of a modular device (Magnetothermic switches, differential thermal magnetic switches, pure differential, ...) and / or power (molded-case circuit breakers, ...) by means of potential-free SPST-NO contacts.

Technical Characteristics

Number of indicator lights 3

Colour lens Other

Type of lamp socket LED

With light source Yes

Rated operating voltage Ue (Min-Max) 12-12 V

Voltage type DC

Type of electric connection Other

Construction type lens Rectangular

Type of lens High

Hole diameter 14 mm

Width opening 14.276 mm

Height opening 4.272 mm

With front ring No

Material front ring Plastic

Colour front ring Other

Degree of protection (IP) IP40

Degree of protection (NEMA) Other

Estimated bulb life 100000 h

Nemo SX - LED module Equipped with 3 LED Lights: green, red and yellow
