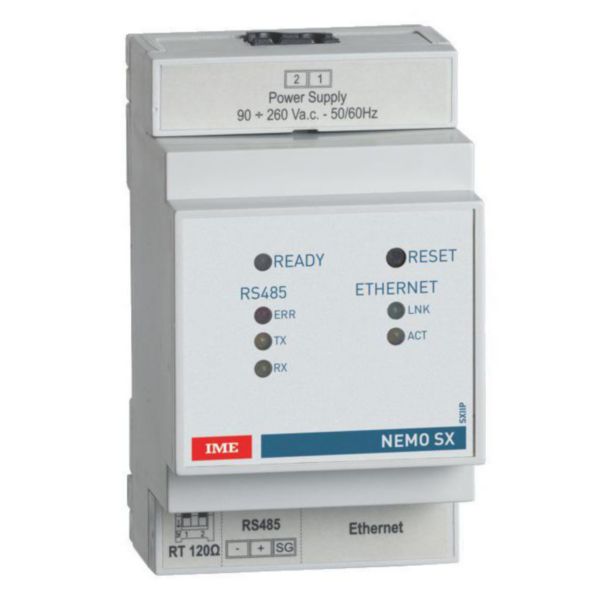

Name: RS485 / Ethernet Modbus converter interface
Brand: BTicino
SKU: IM-SXIIP
Availability: InStock

Description

Interface in 4 DIN MODBUS / IP modules, allows to share the measurement data of the NEMO SX system on IP protocol

Product characteristics

Power between 90 and 265 Vac
120 Ohm terminator on board
Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.

Products benefits

Installation

Modbus RS485 / Modbus converter TCP-IP It performs the Modbus RS485 - Modbus TCP / IP conversion allowing to connect the devices present in the electrical panel to an Ethernet network.

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency No

Bus system LON No

Bus system Powernet No

Other bus systems Other

Radio frequency bidirectional No

Model Telecommunications interface

Mounting method DRA (DIN-rail adaptor)

Width in number of modular spacings 3

Number of channels 1

Max. number of devices per channel 32

Demounting protection No

With LED indication Yes

Updateable Yes

Operating voltage (Min-Max) 230-230 V

Voltage type AC

Power consumption 2.94 W

Protocol TCP/IP

Provider dependent No

Visualization Yes

Web-Server Yes

Radio interface No

IR interface No

Degree of protection (IP) IP40

Width 53.83 mm

Height 109 mm

Depth 58.4 mm

Operating / setting temperature (Min-Max) -20-60 °C

Storage temperature (Min-Max) -40-85 °C

Supply current (Min-Max) 0.0113-0.0326 A

Terminal marking indication Yes

Halogen free Yes

Connection type Other

Terminals capacity (Min-Max) 1.5-4 mm²

Connection type Cable

Label space/information surface No

Fitted with USB plug No

Addressable Yes

Connected object No

RS485 / Ethernet Modbus converter interface
