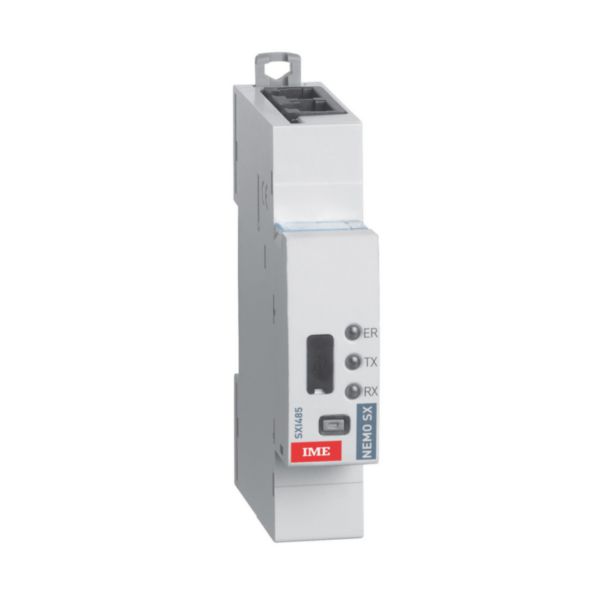

Conversion module between the Nemo SX system protocol and the Modbus RS485 protocol
IM-SXI485
|
8032826209970
Description
Interface from 1 DIN module NEMO SX / MODBUS, allows to share the measurement, status and pulse data of the NEMO SX system on MODBUS
Product characteristics
- System power supply at 12Vdc (Purchased with NEMO SX communication cable)
- Equipped with 2 NEMO SX connectors and 2 RJ45 connectors for ModBus
- Protected against usual bodies up to 12.5mm wide: IP20 according to IEC / EN 60529.
Products benefits
Installation
- DIN module dedicated to use in the Nemo SX system. It performs the conversion between the Nemo SX protocol (dedicated wiring) and the Modbus RS485 protocol.
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Model
Other
Mounting method
Other
Width in number of modular spacings
1
Material
Plastic
Material quality
Thermoplastic
Surface protection
Other
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7035
Transparent
No
Max. data transmission rate
115200 Bd
With bus connection
Yes
With label area
Yes
With LED indication
Yes
Degree of protection (IP)
IP40
