Nemo SX IME

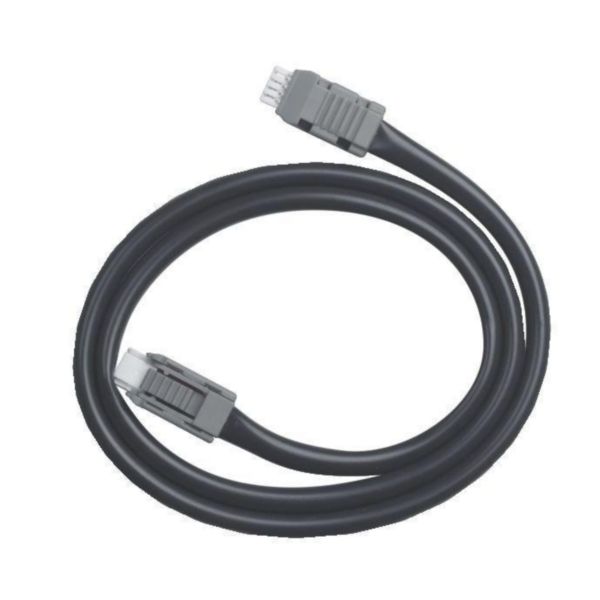

Pack of 10 pre-wired fast-connection cables L= 250mm for Nemo SX system

IM-SXAC250 | 8032826210044
Pack of 10 pre-wired fast-connection cables length 250mm for Nemo SX system - They allow the transmission of power and data between the modules of the system by connecting them through the two dedicated ports present in the lower part of each device
Description
Product characteristics
  • Fast connector
Products benefits
Installation
  • Communication cable and power supply to be used between the various modules of the NEMO SX system
Technical Characteristics
Cable type Other
Duplex No
Conductor material Copper
Conductor surface Bare
Diameter conductor 0.404 mm
Nominal cross section conductor 0.128 mm²
AWG size Other
Conductor category Class 1 = solid
Number of cores 7
Number of stranding elements 4
Stranding element No
Material core insulation Polyvinyl chloride (PVC)
Core identification according to HD 308 S2 No
Core identification Colour
Screen over stranding element None
Screen over stranding None
Longitudinal water blocking cable No
Radial water blocking cable No
Suitable for underground installation No
Approved type of underground installation Other
Protective sheath Other
Material outer sheath Polyvinyl chloride (PVC)
Specification material outer sheath Other
Colour outer sheath Other
Number of sheath layers 1
Armouring/reinforcement None
Material armouring Other
Cable geometry Round
Flame retardant according to IEC 60332-1-2 Yes
Halogen free according to EN IEC 60754-1 Yes
Outer diameter approximate 0.95 mm
Permitted cable outer temperature during assembling/handling (Min-Max) 80-80 °C
Permitted cable outer temperature after assembling without vibration (Min-Max) 80-80 °C
Suitable as telephone cable No
Suitable as computer data cable No
Suitable as signalling cable Yes
Suitable for use as security alarm cable No
Drain wire No
With rip cord No
Cable width approximate 5 mm
Cable height approximate 5 mm
Weight 6 kg/km
Nominal voltage U 12 V
With rodent protection No
Compatible with Grade2TV according to XP-C 90-483 No
Compatible with Grade3TV according to XP-C 90-483 No
Documentation
4 documents
Technical Sheet
IDP000163EN_05 | PDF (3.3 MB) | EN
Instruction Use
LE10287FR | PDF (1.4 MB) | EN · FR
Technical Sheet
NT906FR | PDF (1.7 MB) | EN · FR
Installation Guide
USER MANUAL NEMO SX EN | ZIP (4.6 MB) | EN
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
1 documents
Software
IME_NEMO_SX_CONFIGURATOR_SETUP_2.01.00 | EXE (13.2 MB) | FR · EN
