Delta IME

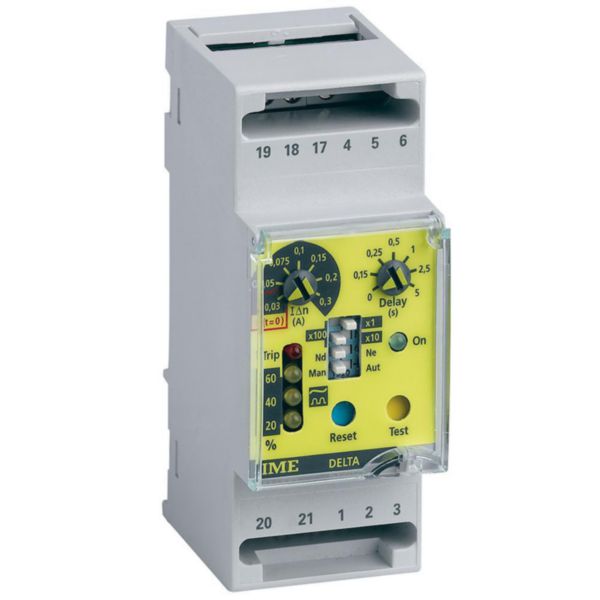

Type A-filter residual current relay Delta D2-s for harmonic components

IM-RD3AF1HB | 8032826137662
DELTA D2-s - Type A-filter residual current relay for harmonic components - manual or automatic reset - instantaneous value %Idn by 4 LED - Connection: low voltage lines with transformers series Del-Dela - Dimension: 2 DIN modules - Output: 1 relay with contact SPDT - Aux: 20÷150 Vdc/48 Vac - Threshold: 30 mA÷30A
Technical Characteristics
Type of electric connection Screw connection
With detachable clamps No
Function For AC-current system
Supply voltage AC 50 Hz (Min-Max) 36-66 V
Supply voltage AC 60 Hz (Min-Max) 36-66 V
Supply voltage DC (Min-Max) 20-150 V
Rated operating frequency (Min-Max) 47-63 Hz
Response value amperage 1 (Min-Max) 30-30000 mA
Min. adjustable delay-on energization time 0 s
Max. permitted delay-on energization time 5 s
Indication of difference current Yes
Error registration possible No
Number of contacts as change-over contact 1
Voltage type (operating voltage) AC
Width 35 mm
Height 89 mm
Depth 65.6 mm
Degree of protection (IP) IP50
Operating / setting temperature (Min-Max) -10-55 °C
Storage temperature (Min-Max) -40-70 °C
Mounting method DIN rail
Documentation
2 documents
Instruction Use
LE12562AA | PDF (250 KB) | IT · EN
Technical Sheet
NT597 | PDF (204 KB) | IT · EN
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
