Delta IME

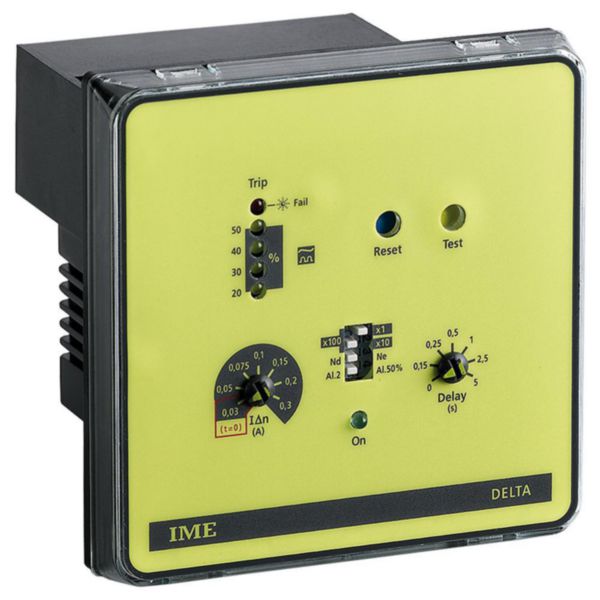

Type A-filter residual current relay Delta 96-F for flush mounting powered filter

IM-RD2G212B | 8032826137594
DELTA 96-F - Type A-filter residual current relay for flush mounting with powered filter - manual or automatic reset - instantaneous value %Idn by 4 LED - Connection: low voltage lines with transformers series Del-Dela - Dimension: 96x96mm - Output: 1 relay with contact SPDT - 115Vac
Technical Characteristics
With detachable clamps No
Function For AC-current system
Supply voltage AC 50 Hz (Min-Max) 100-127 V
Supply voltage AC 60 Hz (Min-Max) 100-127 V
Rated operating frequency (Min-Max) 47-63 Hz
Response value amperage 1 (Min-Max) 50-30000 mA
Min. adjustable delay-on energization time 0 s
Max. permitted delay-on energization time 5 s
Indication of difference current Yes
Error registration possible No
Number of contacts as change-over contact 2
Voltage type (operating voltage) AC
Width 96 mm
Height 96 mm
Depth 92 mm
Degree of protection (IP) IP40
Operating / setting temperature (Min-Max) -10-55 °C
Storage temperature (Min-Max) -40-70 °C
Mounting method Flush-mounted
