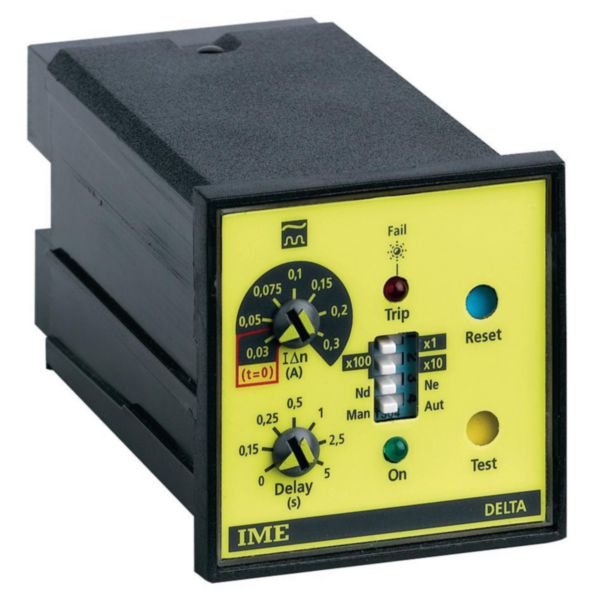

Type A-filter residual current relay Delta 48-s for harmonic components

IM-RD1DF1HB | 8032826020247
DELTA 48-s - Type A-filter residual current relay for harmonic components - manual or automatic reset - Connection: low voltage lines with transformers series Del-Dela - Dimension: 48x48mm - Output: 1 relay with contact SPDT - Aux: 20÷150 Vdc/48 Vac
Technical Characteristics
Type of electric connection Other
With detachable clamps No
Function For three-phase supply system
Supply voltage DC (Min-Max) 20-150 V
Rated operating frequency (Min-Max) 47-63 Hz
Response value amperage 1 (Min-Max) 30-30000 mA
Min. adjustable delay-on energization time 0 s
Max. permitted delay-on energization time 5 s
Indication of difference current No
Error registration possible No
Number of contacts as normally open contact 0
Number of contacts as change-over contact 0
Voltage type (operating voltage) AC/DC
Width 48 mm
Height 48 mm
Depth 102 mm
Documentation
3 documents
Instruction Use
10781265FR | PDF (756 KB) | EN · FR
Instruction Use
LE12562AA | PDF (250 KB) | IT · EN
Technical Sheet
NT556-00 | PDF (656 KB) | EN · FR · IT
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
