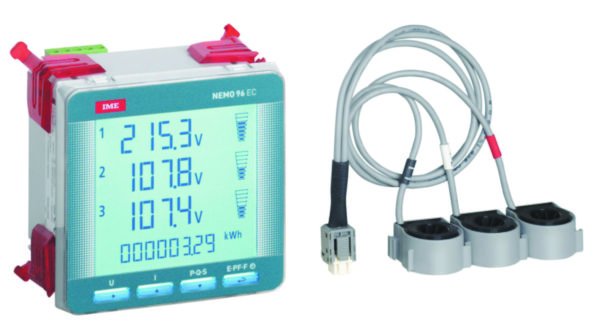

EASYCONNECT - basic flush-mounting type 96x96mm multifunction measuring unit
IM-MK96R63MT
|
8032826514869
Description
PMD 96x96 with errorproof 63 A current sensors connection. Communication protocol MBUS RTU
Product characteristics
- Already equipped with a 63A probe
- Suitable for 3n-3E and 3-3E systems
Products benefits
Installation
- Quick and error proff connection for current sensors. CT configuration ratio has to be programmed
Usage
- Fitted with a display allowing a clear, visible and convenient reading of the main electricals values.
Technical Characteristics
Mounting method
Built-in
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
Width
96 mm
Height
96 mm
Depth
72 mm
Built-in depth
62 mm
Degree of protection (IP)
IP54
Operating / setting temperature (Min-Max)
-5-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Nominal voltage (Min-Max)
195-265 V
Terminal marking indication
Yes
Connection type
Push-in clamp
Connected object
No
