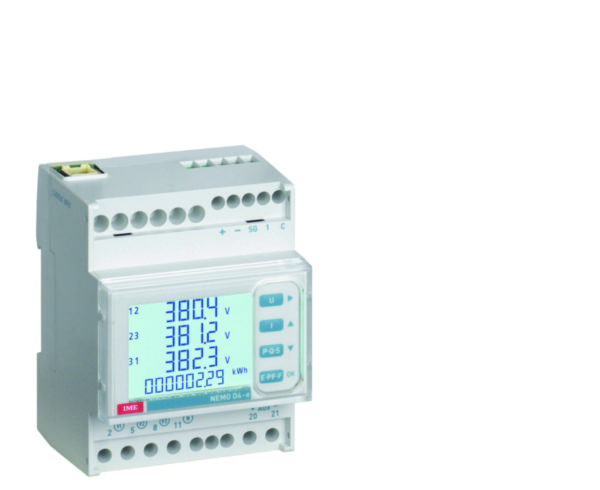

EASYCONNECT - basic modular multifunction measuring unit
IM-MFD4ORFCMT1
|
8032826514821
Description
PMD 4DIN with errorproof current sensors connection. Probe can be choose by different options. Communication protocol MBUS RTU
Product characteristics
- Must be extended with a 630A;1600A;3200A;6300A openable probe
- Suitable for 3n-3E and 3-3E systems
Products benefits
Installation
- Quick and error proff connection for current sensors.
Usage
- Fitted with a display allowing a clear, visible and convenient reading of the main electricals values.
Technical Characteristics
Mounting method
DIN rail
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
Width
71.2 mm
Height
90 mm
Depth
65 mm
Built-in depth
49 mm
Degree of protection (IP)
IP54
Operating / setting temperature (Min-Max)
-5-55 °C
Storage temperature (Min-Max)
-25-70 °C
Voltage type
AC
Nominal voltage (Min-Max)
195-265 V
Frequency (Min-Max)
45-65 Hz
Terminal marking indication
Yes
Connection type
Push-in clamp
Connected object
No
Documentation
7 documents
Technical Sheet
IDP000266_04 | PDF (2.9 MB) | DE · FR · EN · IT
Technical Sheet
IDP000266EN_04 | PDF (4.2 MB) | EN
Technical Sheet
IDP000266FR | PDF (4.6 MB) | EN · FR
Instruction Use
LE04289AA | PDF (1.9 MB)
Instruction Use
LE11393FR | PDF (3.9 MB) | EN · FR
Instruction Use
LE11893AB_02 | PDF (1.7 MB)
Instruction Use
LE11893FR | PDF (1.8 MB) | EN · FR
2 documents
Trade Guide
IDP000388FR | PDF (227 KB) | EN · FR
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
