DGP36 P2k IME

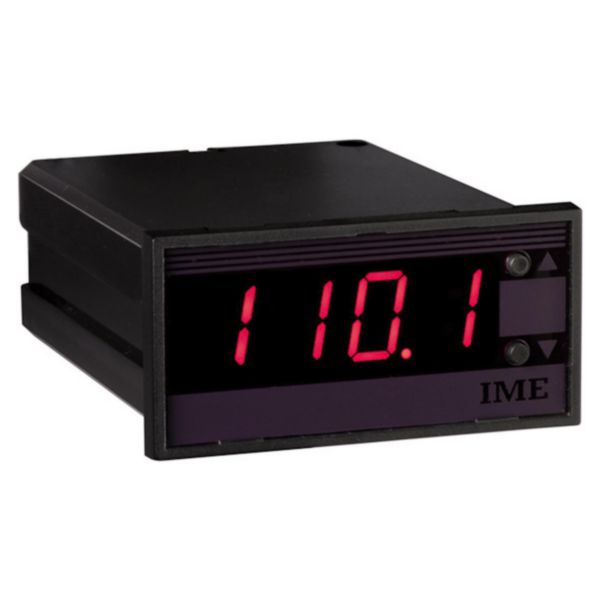

Programmable digital indicator DGP 36 P2k for current or voltage

IM-DG3P0NP1 | 8032826044403

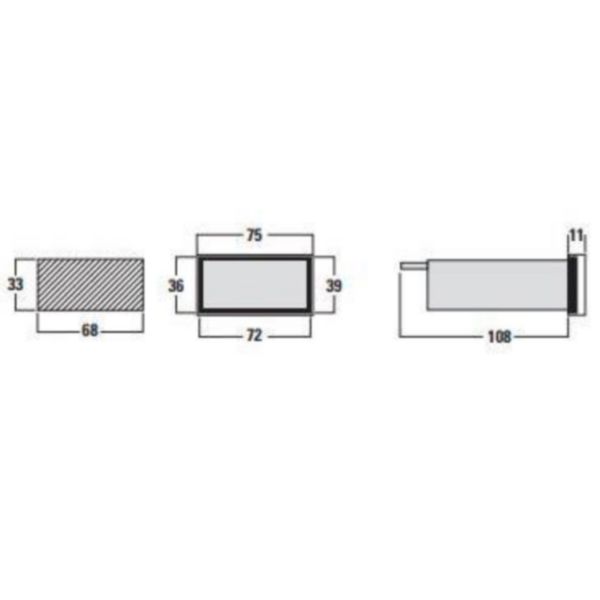

DGP 36 P2k - Programmable digital indicator for current or voltage DC 2000 points - Dimension:72x36mm - Input: 1/5/10/20mA - 4-20mA - 50/60/75/100/150mV - 1/5/10V - Aux: 80-270Vac/100-300Vdc - Viewing: programmable (max +-1999)
Technical Characteristics
Ampere meter Yes
Reactive power meter No
With rotational speed meter No
Frequency meter No
Pulse counter No
Voltmeter Yes
Effective power measurement device No
Documentation
3 documents
Instruction Use
10782880FR | PDF (419 KB) | EN · FR
Technical Sheet
NT-850 | PDF (95 KB) | IT · EN
Technical Sheet
NT850FR | PDF (192 KB) | EN · FR
1 documents
Catalog Commercial Page
3226373 | PDF (16.9 MB) | EN
