AQ72Mrad IME

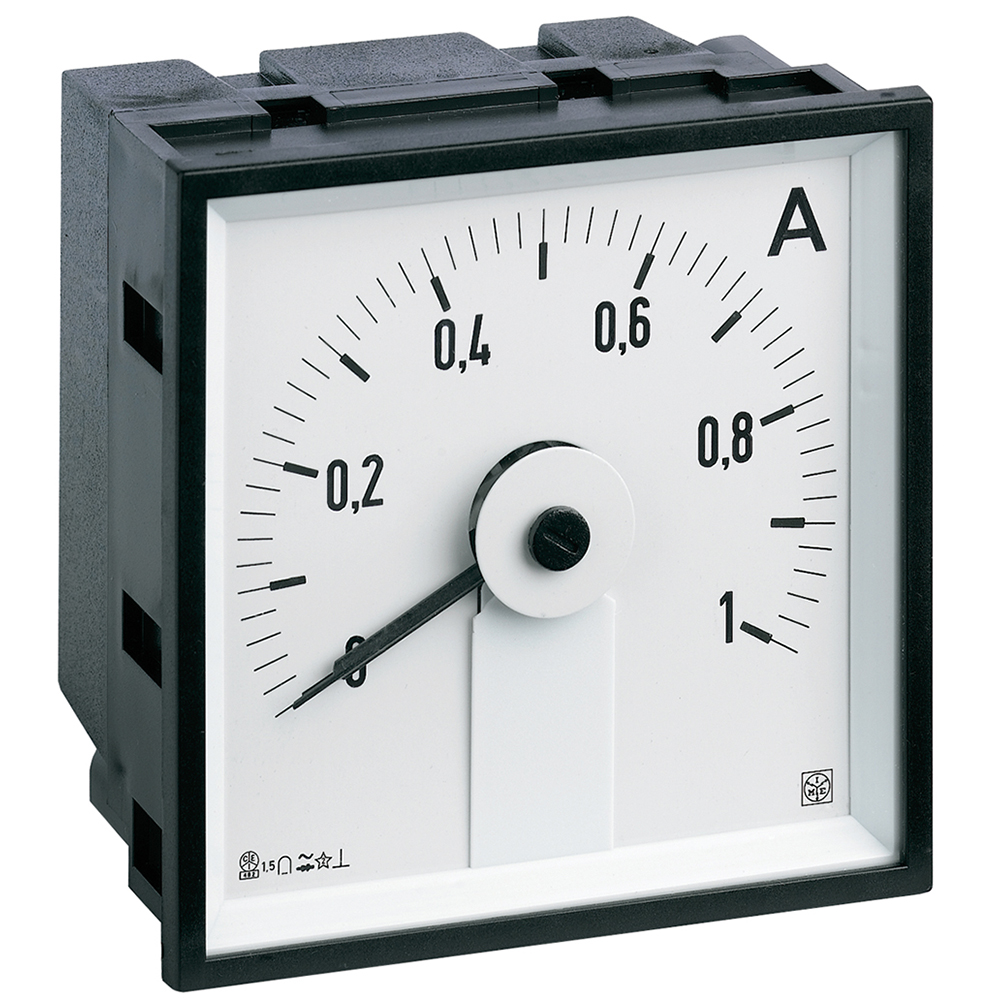

Ammeter AC AQ72Mrad (by CT) - In: 1250/5A

Name: Ammeter AC AQ72Mrad (by CT) - In: 1250/5A
Brand: BTicino
SKU: IM-AN6151D125
Availability: InStock

IM-AN6151D125 | 8032826039935

AQ72Mrad - Ammeter AC (mobile coil with rectifier accessory) - Dimension: 72x72mm - Connection: by CT - Current: 1250/5A - Scale: 0÷In

Compare

Technical Characteristics

Nominal end value of the scale 1250 A

Measuring range (Min-Max) 0-1250 A

Transformer connection Yes

Accuracy class 1.5

Power loss 1.1 W

Voltage type AC

Overcurrent scale No

Calibrated Yes

Model Front mounting

Suitable for distribution board No

Width 72 mm

Height 72 mm

Width in number of modular spacings 0

Max. needle deflection 240 °

Measurement system Moving coil

Stay-set indicator Yes

Scales lighting No

Depth 84 mm

Degree of protection (IP) IP20

Operating / setting temperature (Min-Max) -25-50 °C

Storage temperature (Min-Max) -40-80 °C

Frequency (Min-Max) 45-65 Hz

Documentation

Technical Sheet

NT-790 | PDF (616 KB) | IT · EN

Catalog Commercial Page

3226373 | PDF (16.9 MB) | EN
