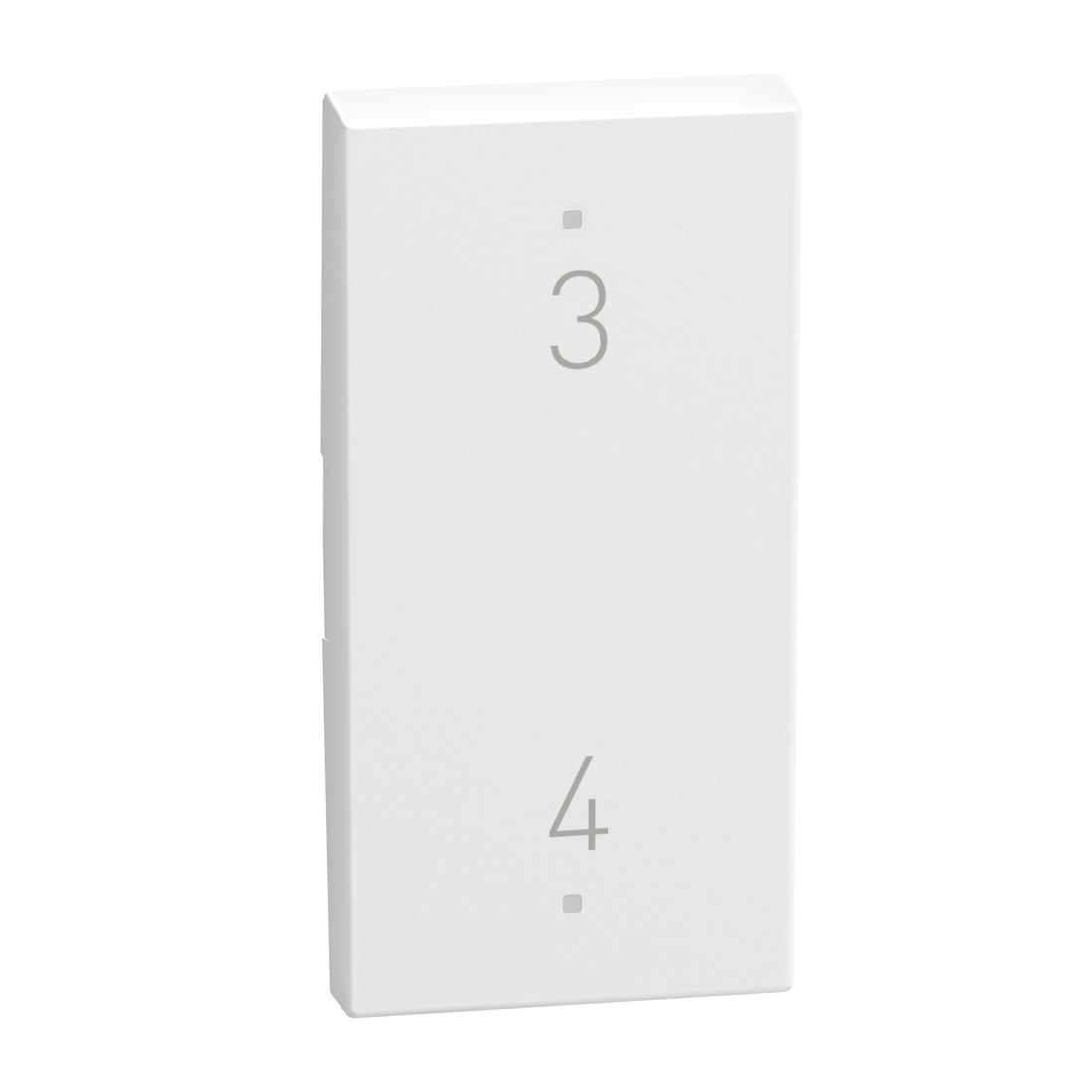

2 functions silk-screen printed Key cover with symbol Scenario N° 3 - 4 - 1 module - white
BT-YW4911MHAN
|
8005543764381
Description
LN collection of keycover has a silent, distinctive and eternal design.A flatness and monolithic form that balances an minimal design respecting a traditional composition with sophisticated details.cover for the controls 1 module white
Product characteristics
- specific 3 4 symbol to indicate performed function
- 2 functions management over 1 module
- 1 module
- colour white
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor usage only
Products benefits
Advantages
- the maximun quality in terms of materials and installation
- Minimal and pure design where every detail becomes the protagonist. Perfect alignment between cover plates and axial controls.Timeless minimalist design with cutting-edge smart technologies.
Technical Characteristics
Model
One-part button
Imprint/indication
Various symbols
Scannable symbol/barrier free
No
Utilization
Other
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Width
22 mm
Height
44 mm
Depth
6.4 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-25-70 °C
Documentation
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
