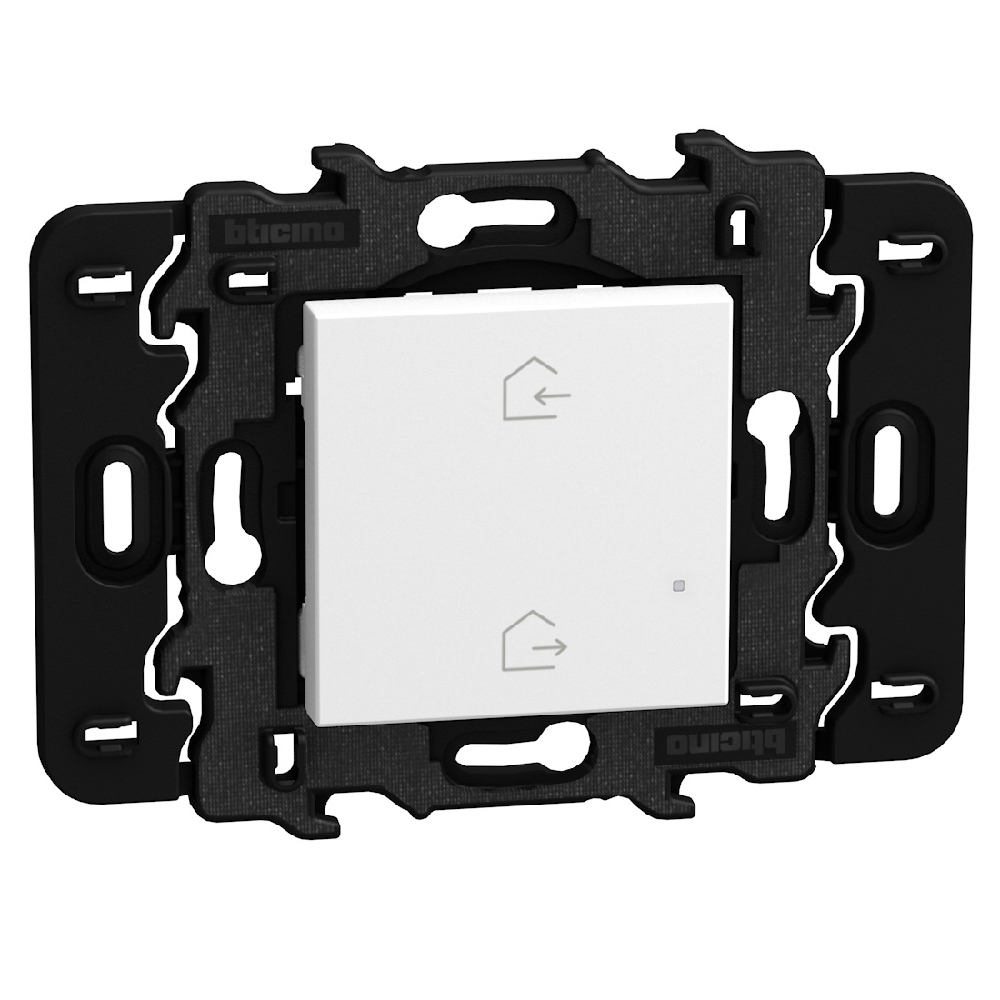

Wireless Home/Away scenario controls - 3V battery power supply - 2 modules - white
BT-YW4570CW
|
8005543758922
Description
The Home/Away wireless master switch allows you to add an extra Home/Away wireless switch. In the Home + Control app, choose which lights, roller shutters or electrical appliances you wish to control via the Home and Away scenarios,
Product characteristics
- Predefined Home/Away scenarios which can be customised from the Home + Control app. Manage them with a single press on your wireless master switch
- LED indicator with low battery warning
- Supplied with a replaceable battery with an 8-year life
- 2.4 GHz radio technology
- White
Recommendations / Restrictions
- To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a Light Now with Netatmo connected starter pack, as well as one or more Light Now with Netatmo connected switches, power outlets or lighting micromodules
Products benefits
Installation
- Extra-slim, the Home/Away wireless master switch is attached to a wall with the adhesive pads provided. It can therefore be repositioned. Can also be screwed onto a flush-mounting box
Usage
- The Home/Away wireless master switch complements the one included in the Light Now with Netatmo connected starter pack. You can therefore place each of these switches at different entrances to your home
Advantages
- Perfect aesthetic integration with the installed wiring devices
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
Yes
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
No
Surface mounted radio transmitter
Yes
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Battery
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
36 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
White
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Surface mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
Documentation
2 documents
Technical Sheet
IDP001915 | PDF (1.1 MB) | EN
Instruction Use
LE14762AA | PDF (3.1 MB) | IT · EN · FR · DE · ES · NL · PT · AR
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
