  6. BT-YW4413CM2
  • Dimmer/switch without neutral. Power supply 110-230 Vac - 2 modules - white
  • Dimmer/switch without neutral. Power supply 110-230 Vac - 2 modules - white
  • Dimmer/switch without neutral. Power supply 110-230 Vac - 2 modules - white
Light NOW BTicino

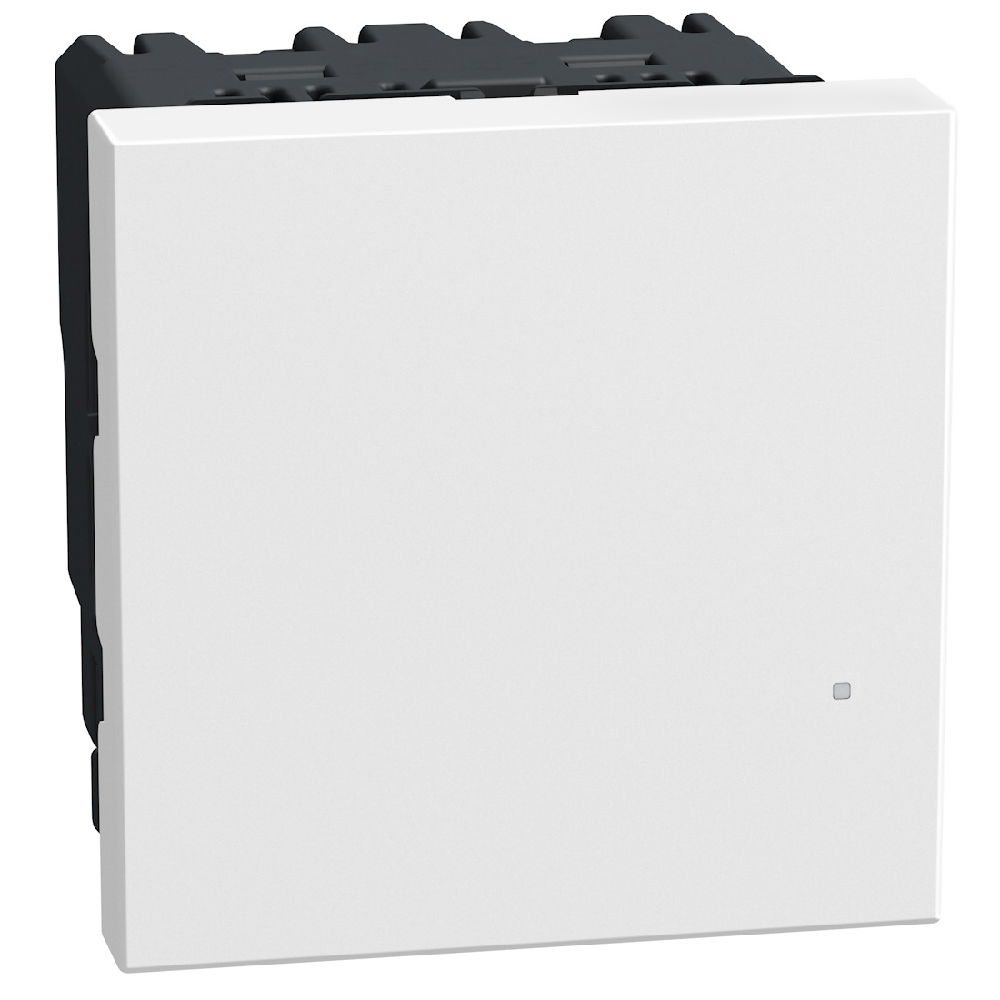

Dimmer/switch without neutral. Power supply 110-230 Vac - 2 modules - white

BT-YW4413CM2 | 8005543759387
Dimmer/switch without neutral. It allows to control Lights locally or remotely, with the dimmer functionality that can be activated from APP Home+Control. It has the same installation and usability of a tradidional switch and it is compatible with all loads (LED, halogen) with power 5-300 W at 230 Vac Its equiped with a blue LED Light used for localization modality or load status modality, configurable by APP. It can be connected associated with “wireless Light switches”. It doesn’t require connection to the neutral, it comes with an active compensator. Power supply 110-230 VA - 2 modules - white
Description

The connected switch (with dimmer option) allows you to control your lights remotely via the Home + Control app, or by using your voice

Product characteristics
  • Without neutral, 5 VA - 125VA, supplied with a bleeder
  • Compatible with conventional or dimmer bulbs, including LEDs. Dimmer mode can be activated from the app
  • LED indicator with locator function which can be activated in the app
  • Auxiliary entry for mechanical push-button control
  • White
Recommendations / Restrictions
  • To connect your switch (with dimmer option), you first need to purchase and install a Light Now with Netatmo connected starter pack. To control your two-way switch, you need to pair one or more Light Now with Netatmo wireless switches with it or a mechanical push-button
Products benefits
Installation
  • The Light Now with Netatmo connected switch (with dimmer option) is easily installed in place of an existingflush-mounting switch and needs a standard-depth flush-mounting box(40 mm).Compatible with claw-fixing boxes.
Usage
  • Control and dim your lights by touching the switch, your smarphone or by your voice using a vocal assistant
Advantages
  • When associated to the connected starter pack, the Light Now with Netatmo products can be controlled manually or remotely from your smartphone or via voice control.
  • Does not require neutral. Supplied with a bleeder for increased compatibility with LED lighting on the market
Technical Characteristics
Assembly arrangement Basic element with central cover plate
Model Tronic
Type of load Universal and LED Retrofit
Substation input Yes
Light value memory Yes
Applicable with button Yes
Applicable with movement sensor Yes
Applicable with presence indicator No
Applicable with time switch/timer Yes
Applicable with transmission button Yes
Applicable with infrared button No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
Nominal voltage 230 V
Frequency (Min-Max) 50-60 Hz
Rated current 0.55 A
Switch capacity (Min-Max) 5-125 W
Number of channels 1
Type of fastening Other
Min. depth of built-in installation box 50 mm
Compatible with Apple HomeKit Yes
Compatible with Google Assistant Yes
Compatible with Amazon Alexa Yes
IFTTT support available No
Width 45 mm
Height 45 mm
Depth 44 mm
Built-in depth 33 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 2.2 mA
Mandatory neutral No
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Antimicrobial treatment No
Connection type Screwed terminal
Number of terminals 3
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable section (Min-Max) 0.75-1.5 mm²
Label space/information surface No
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee
Application store for download App Store, Google Play Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Lighting management
