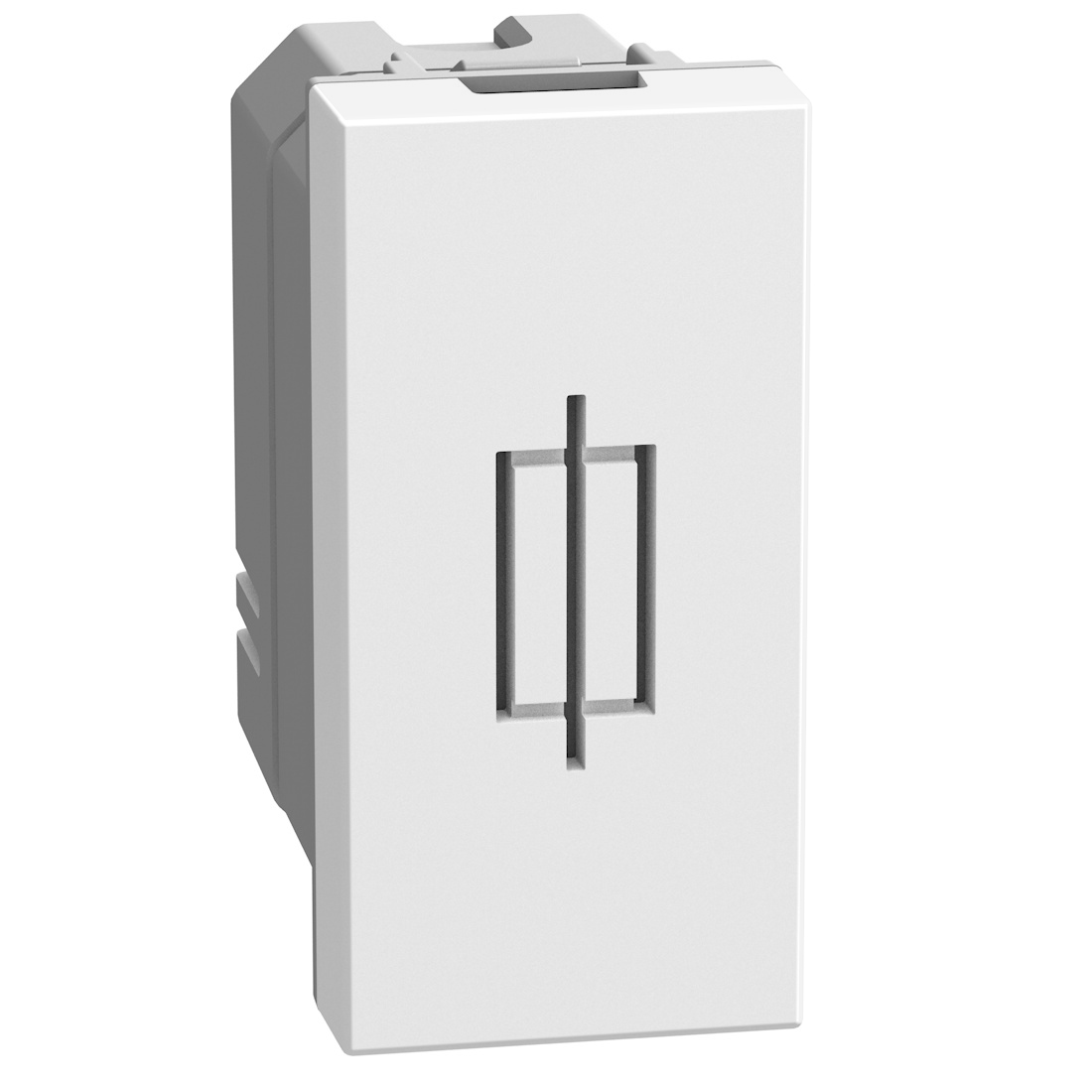

Fuse-carrier for 5 x 20 and 6.3 x 32 fuse - 1 module - white
BT-YW4321
|
8005543751817
Description
Light Now fuse-carrier for 5 x 20 and 6.3 x 32 fuse - max. 13 A 250 Va.c. - 1 module, color white
Product characteristics
- Fuse-carrier for 5 x 20 and 6.3 x 32 fuse - max. 10A 250V
- Fuse carrier 13A white
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Prevents overloads or short circuits
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Connection type
Other
Mounting method
Front mounting
Type of current
AC
Rated current
13 A
Rated voltage
250 V
Dimensions glass fuse
6.3x32 mm
Width
22.5 mm
Height
45 mm
Depth
39 mm
Built-in depth
31 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Nominal voltage (Min-Max)
230-250 V
Supply current (Min-Max)
10-13 A
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Colour
White
RAL-number
9003
Halogen free
Yes
Antimicrobial treatment
No
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
