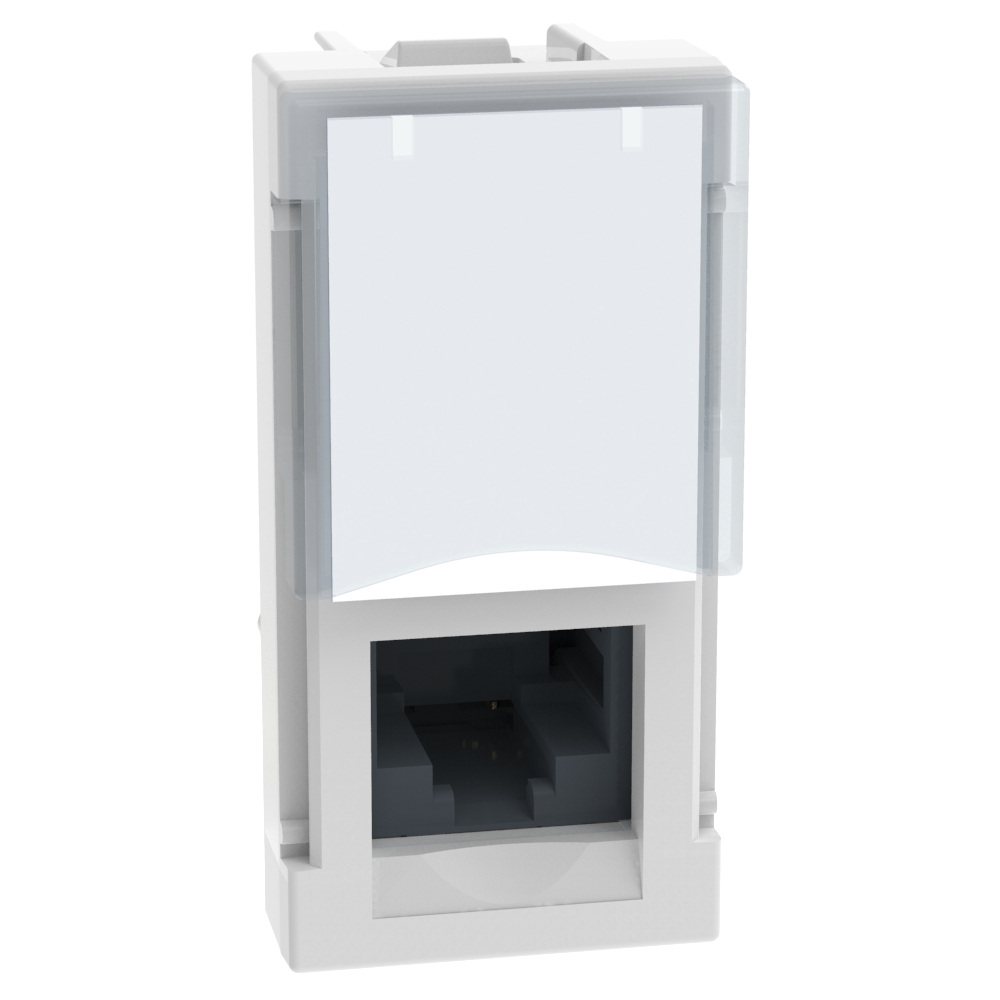

RJ45 toolless UTP cat. 6 - 1 module - white
BT-YW4279C6
|
8005543743133
Description
Light Now RJ45 connector 6 Of pair UTP plug item toolless IDC connection - 1 module, color white
Product characteristics
- RJ45 connector
- RJ45 UTP cat6 white
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect the data communication connection.
Advantages
- It is coordinated with the Light Now aesthetic
- Compatible with cords equipped with RJ11, RJ12 or RJ45 plugs.
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Basic element with central cover plate
Type of connector
2x RJ45 8(8)
With buses/couplings
Yes
Suitable for number of connectors
1
Category
6
Colour
White
RAL-number
9003
Connection type
Insulation displacement connector
Shielded buses
No
Shielded housing
No
Separate earthing connection
No
With label space
Yes
Compatible with third-party covers
No
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
Yes
With terminal resistor
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
Yes
Device width
22.5 mm
Device height
45 mm
Device depth
37 mm
Number of modules (module system)
1
Built-in depth
25.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Entry membrane gland type
Flexible to cut
Cable support
Cable gland
Documentation
1 documents
Technical Sheet
IDP001871 | PDF (1.8 MB) | EN
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
