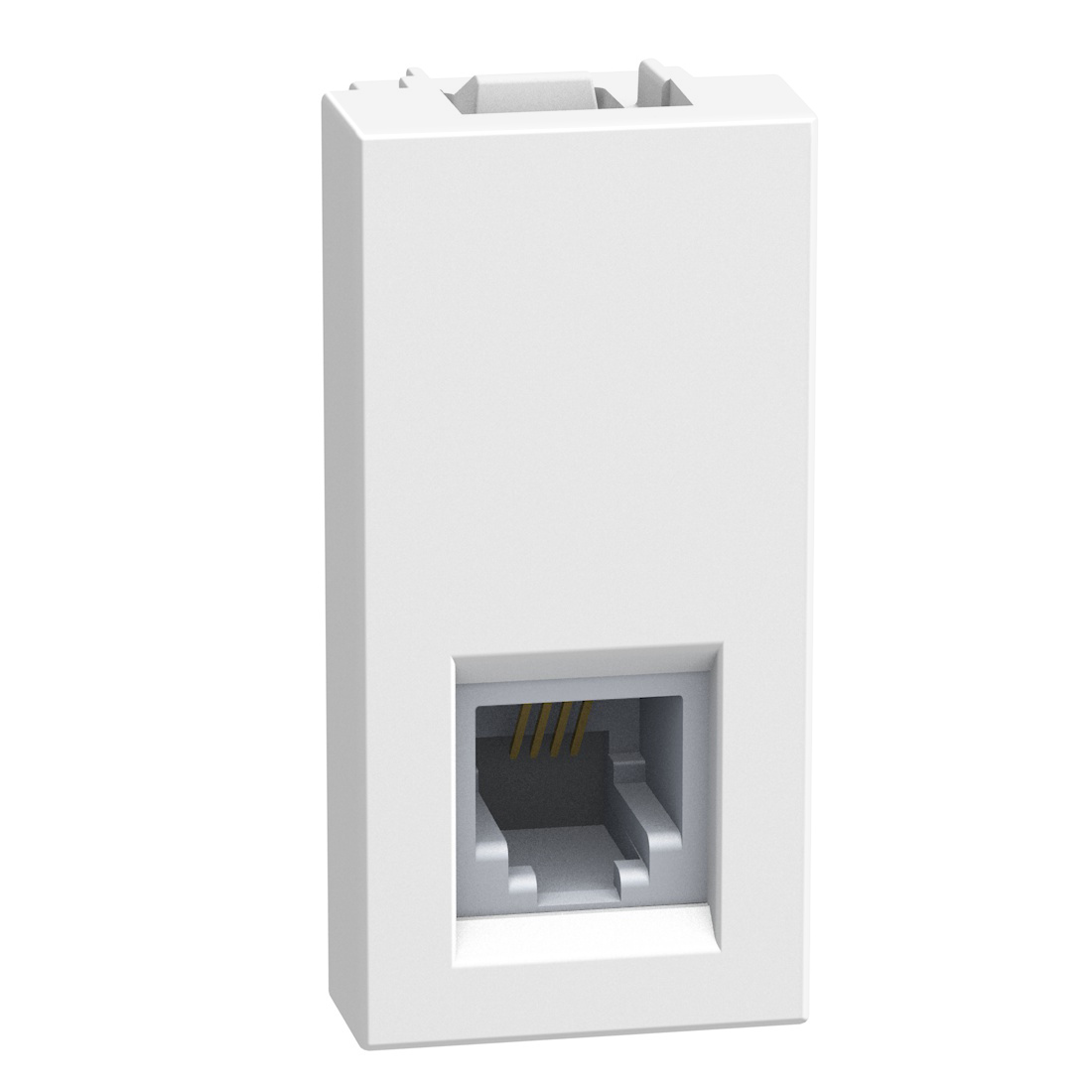

RJ11 connector type K10 - 1 module - white
BT-YW4258RJ11
|
8005543743089
Description
Light Now RJ11 connector for data / telephony transmission. These connectors are designed to meet the requirements related to telephone interconnections - 1 module, color white
Product characteristics
- Telephone socket with screw connection that allows a pass through installation
- RJ11 K10 white
- 1 module
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect the data / telephony transmission.
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Modular device for domestic switching devices
Type of connector
Other
With buses/couplings
No
Suitable for number of connectors
0
Category
Other
Colour
White
RAL-number
9003
Connection type
Other
Shielded buses
No
Shielded housing
No
Separate earthing connection
No
With label space
No
Compatible with third-party covers
No
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
No
With terminal resistor
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
No
Device width
22.5 mm
Device height
45 mm
Device depth
23 mm
Number of modules (module system)
1
Built-in depth
15 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
Halogen free
Yes
Antimicrobial treatment
Yes
Mounting method
Flush-mounted
Entry membrane gland type
Flexible to cut
Vertical fixing center distance (Min-Max)
3.5-3.7 mm
Horizontal fixing center distance (Min-Max)
3-3.2 mm
Cable support
Not applicable
