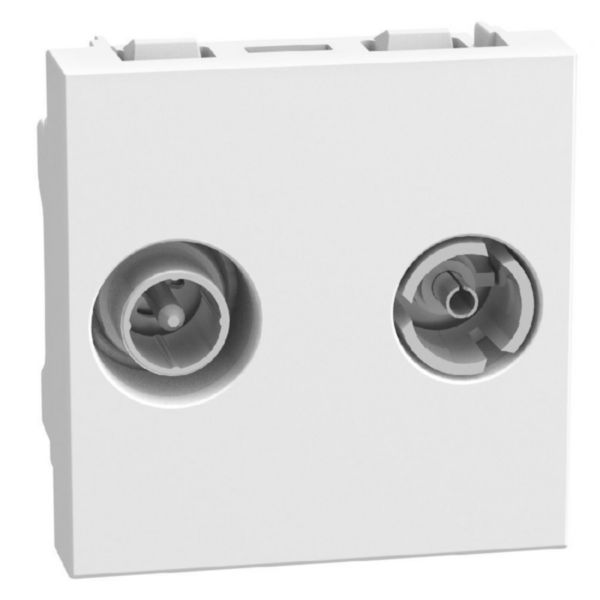

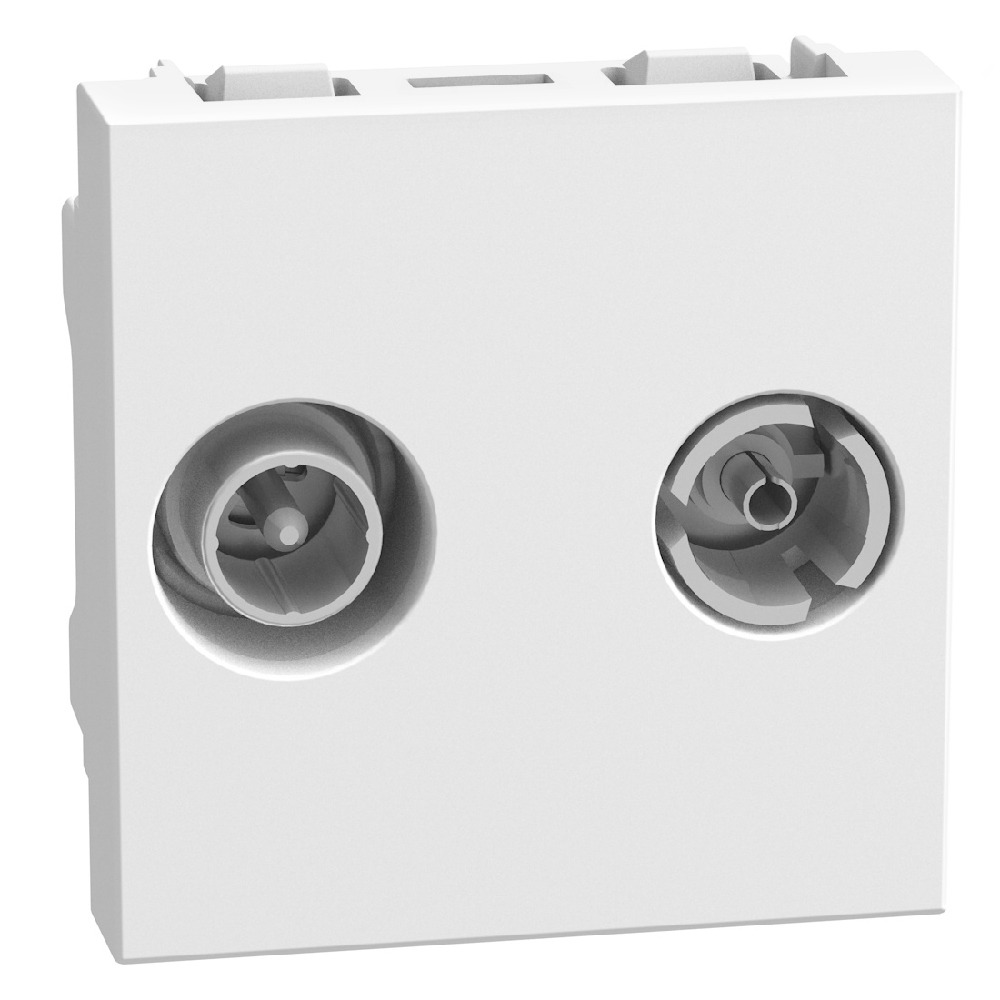

Star demixed TV-SAT sockets - 2 modules - white
BT-YW4217M2D
|
8005543749555
Description
This Star demixed TV-SAT sockets allows distribution of TV & Radio signals, color white
Product characteristics
- Star TV/SAT socket
- TV male connector (Ø 9.5 mm) - SAT F type connector - TV: 5 - 68/120 - 862 MHz; R: 87.5 - 108 MHz; - SAT: 950 - 2400 MHz - attenuation 1.5 dB
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect the TV-SAT cable
Advantages
- Hight technical performance
Technical Characteristics
Model
End socket
Type of socket outlet
TV/SAT
DAB+
No
Mounting method
Flush-mounted
Number of modules (module system)
2
Assembly arrangement
Basic element
Tap loss at 860 MHz
1.5 dB
Tap loss at 2150 MHz
2 dB
Number of outlets
2
Suitable for cable modem
No
TV frequency band (Min-Max)
50-60 MHz
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
White
RAL-number (similar)
9003
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Device depth
37 mm
Min. depth of built-in installation box
39 mm
Built-in depth
29 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
