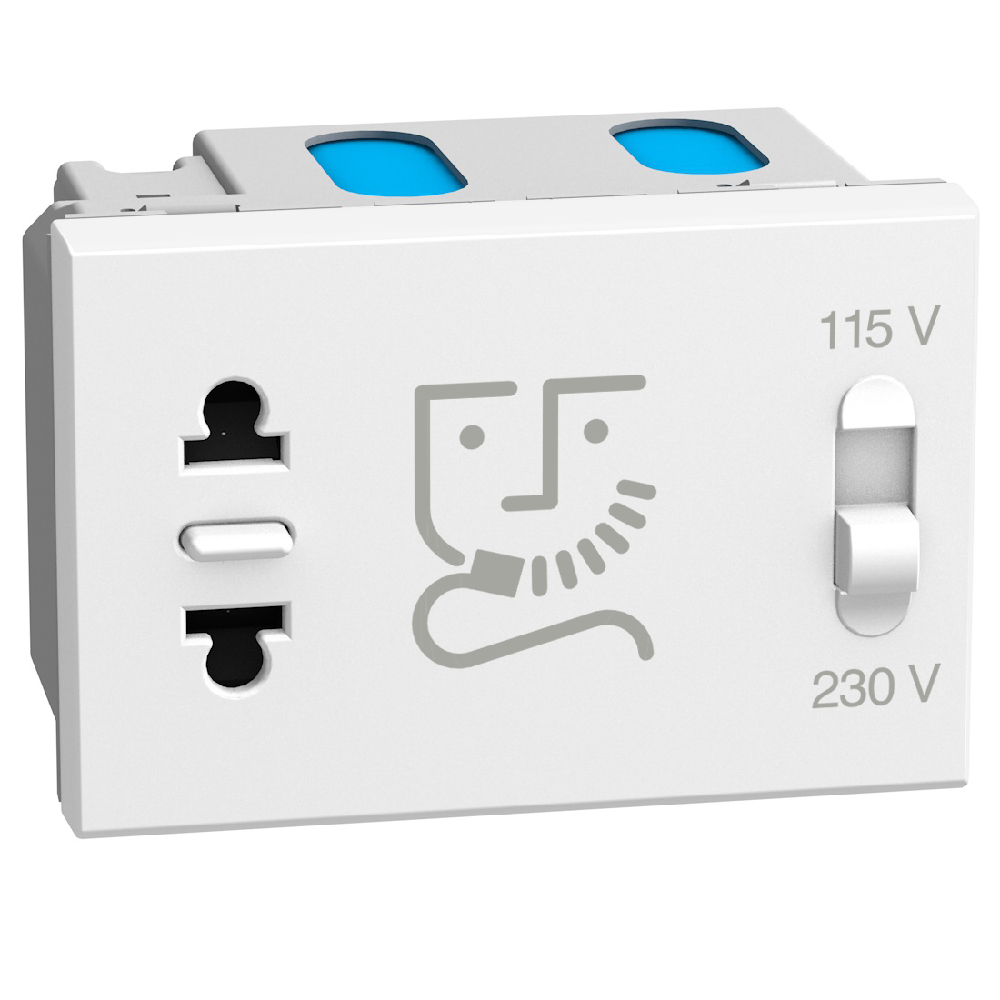

Shaver socket with insulation transformer - 3 modules - white
BT-YW4177
|
8005543751916
Description
This socket allows the use of devices such as an electric shaver or a hairdryer. The transformer supplied allows it to go from 230 to 115V, color white
Product characteristics
- Socket for the use of razors and hairdryers fitted with Euro 2P American standard plugs
- Screw and plate terminals
- 3 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows the use of devices such as an electric shaver or a hairdryer
Advantages
- Hight technical performance
Technical Characteristics
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Mounting method
Flush-mounted
With hinged lid
No
Voltage reversible
Yes
Nominal voltage low value
115 V
Nominal voltage high value
230 V
Rated output
20 VA
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
Yes
Device width
67.5 mm
Device height
45 mm
Device depth
58 mm
With built-in installation box
No
Min. depth of built-in installation box
54 mm
Built-in depth
44 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Terminal marking indication
No
Antimicrobial treatment
No
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Documentation
1 documents
Technical Sheet
IDP001881 | PDF (284 KB) | EN
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
