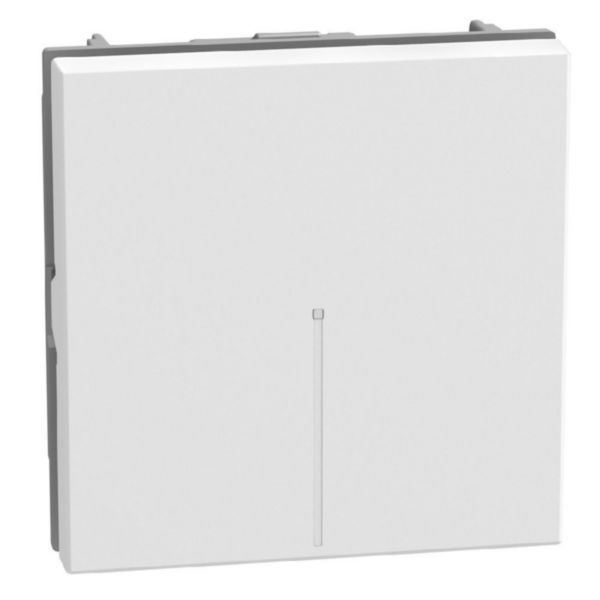

Pushbutton 1P NO 10A 2 modules white, axial, lightable, automatic terminals
BT-YW4055M2A
|
8005543756669
Description
push 1P NO 10A 2m white, axial, lightable
Product characteristics
- pushbutton, automatic terminal
- 1P 10 AX 250 Va.c.
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- The led inside gives a clear, intense bright beam
Advantages
- Hight technical performance
- The axial ergonomy guarantees the perfect flatness between the mechanisms and the coverplate thanks to advanced technology, synthesis of a very mechanical precise and sophisticated.
- The signature and the possibility to insert the LED behind the command, facilitate the recognition of the Light Now range, resuming BTicino DNA and premium brand values.
Technical Characteristics
Assembly arrangement
Basic element
Model
Single push button
Method of operation
Push button
Operating principle
Electromechanical
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Number of revolving contacts
0
Contactless type
No
Number of rockers
1
Number of modules (module system)
2
Number of poles
1
Nominal voltage
250 V
Rated current
10 A
With lighting
Yes
With light source
No
With complemantary luminous signal
No
Monitoring contact
No
Connection type
Push-in clamp
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
Yes
Label space/information surface
No
Imprint
None
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Device depth
35.5 mm
Min. depth of built-in installation box
36.5 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
36.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
