  6. BT-YW4012
  • 1-way switch 2P 10 AX - 250 V with key - 1 module - white
  • 1-way switch 2P 10 AX - 250 V with key - 1 module - white
  • 1-way switch 2P 10 AX - 250 V with key - 1 module - white
Light NOW BTicino

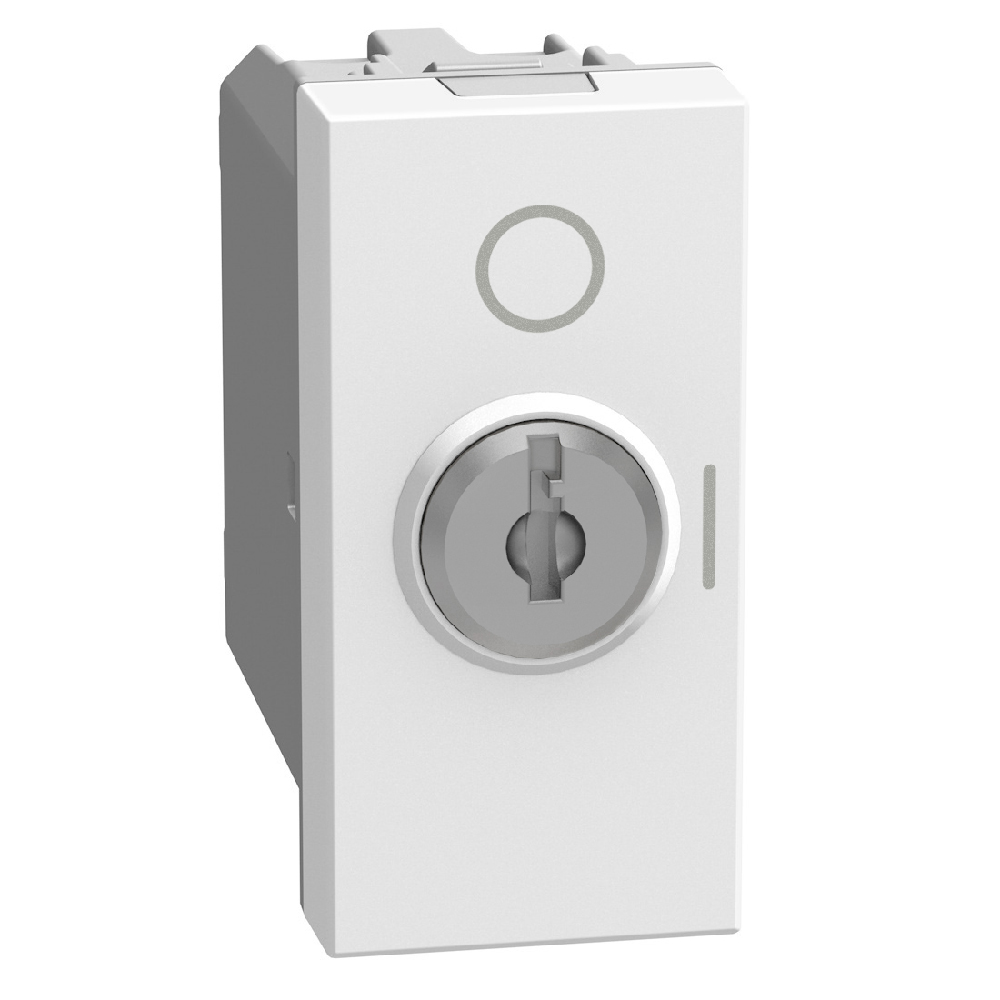

1-way switch 2P 10 AX - 250 V with key - 1 module - white

BT-YW4012 | 8005543751992
1-way switch 2P 10 AX - 250 V with key - the key can be taken out even in the off position - the keys are different - 1 module - white
Description

1 way switch 2P 16AX with key - 1 module, color white

Product characteristics
  • 1way switch, v/p terminal
  • 2P 16AX 250 Va.c.
  • 1 module
  • Color White
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only
Products benefits
Installation
  • Easy to install and remove
Usage
  • This switch is equipped with a key that allows it to be operated
Advantages
  • Hight technical performance
Technical Characteristics
Wiring system Switch 2-pole
Method of operation Key
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 1
Push button switch Yes
Number of rockers 2
Mounting method Flush-mounted
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 44 mm
Built-in depth 34 mm
Min. depth of built-in installation box 44 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication No
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
