  6. BT-YG4574CWI
  • Flush-mounting wireless Wake Up / Sleep scenario controls - 3V battery power supply - 1 module - stone
  • Flush-mounting wireless Wake Up / Sleep scenario controls - 3V battery power supply - 1 module - stone
  • Flush-mounting wireless Wake Up / Sleep scenario controls - 3V battery power supply - 1 module - stone
Light NOW BTicino

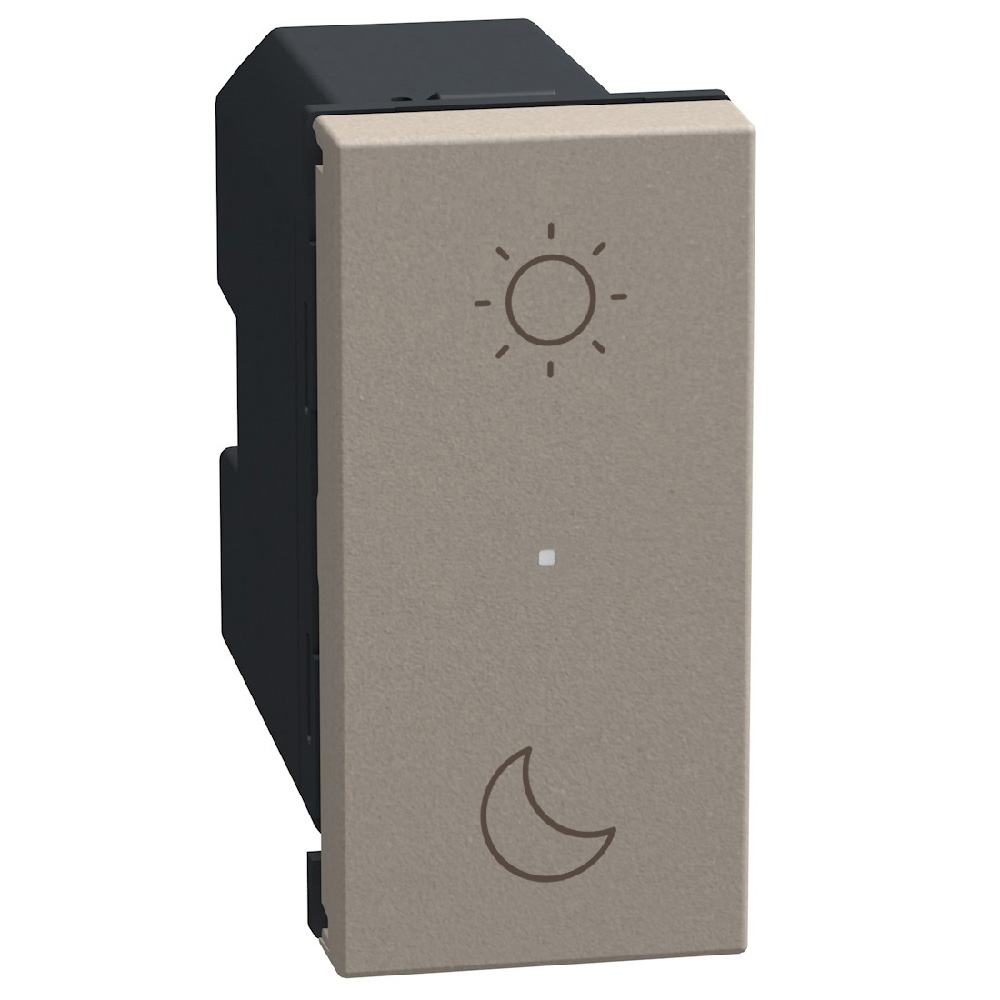

Flush-mounting wireless Wake Up / Sleep scenario controls - 3V battery power supply - 1 module - stone

BT-YG4574CWI | 8005543749999
Wireless Wake Up / Sleep scenario controls. It is equipped with 2 buttons for activating Wake Up / Sleep scenarios. Scenarios can be customized by the Home + Control app. It can be installed in any flush-mounted box without any wiring. The battery can be replaced without removing it from the supporting frame. Integrated LED for low battery indication. Powered by battery 3V type CR2032 (supplied) with an autonomy of 8 years - 1 module - stone
Description

With the Wake Up/Sleep wireless switch, choose which lights, roller shutters or electrical appliances you wish to control via the Wake Up and Sleep scenarios, and manage them with a single press on your wireless switch

Product characteristics
  • Wake Up/Sleep scenarios can be customised from the Home + Control app
  • LED indicator for low battery warning
  • Supplied with a replaceable battery with a lifetime of 8 years
  • Stone
Recommendations / Restrictions
  • To add your Sleep/Wake Up wireless switch to your connected installation, you first need to purchase and install a Light Now with Netatmo gateway, as well as one or more Light Now with Netatmo connected switches, power outlets or lighting micromodules
Products benefits
Installation
  • The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.
Usage
  • Install the Sleep/Wake Up wireless switch next to your bed, and launch the Sleep scenario which you will have customised to switch off the lights and lower the roller shutters
Advantages
  • Perfect aesthetic integration with the installed wiring devices
Technical Characteristics
Radio frequency 2400 MHz
Rolling code system Yes
Code length (Bit) 128
Range 185 m
Number of commands 2
With manual radio transmitter Yes
Flush-mounted radio transmitter Yes
Surface mounted radio transmitter No
With radio coding device Yes
Degree of protection (IP) IP40
Keyboard protection cover No
Current supply Battery
Width 22.5 mm
Height 45 mm
Depth 44 mm
Built-in depth 36 mm
degree of impact strength (IK) IK04
Operating / setting temperature (Min-Max) 5-45 °C
Storage temperature (Min-Max) 0-45 °C
Standby consumption 0 mA
Mandatory neutral No
Stress test conformity (1000V) No
Colour Beige
RAL-number 7008
Halogen free Yes
Antimicrobial treatment No
Mounting method Flush-mounted
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR2032
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 1
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 3 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Connected object Yes
Operating method Zigbee
Application store for download Google Play Store, App Store
Programming way Smartphone apps
With voice command Yes
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box Yes
Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri
Application name Home + Control
Product use function Lighting management
Documentation
2 documents
Technical Sheet
IDP001911 | PDF (493 KB) | EN
Instruction Use
LE14883AB | PDF (1.4 MB) | IT · EN · FR · DE · ES · NL · PT · AR
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
