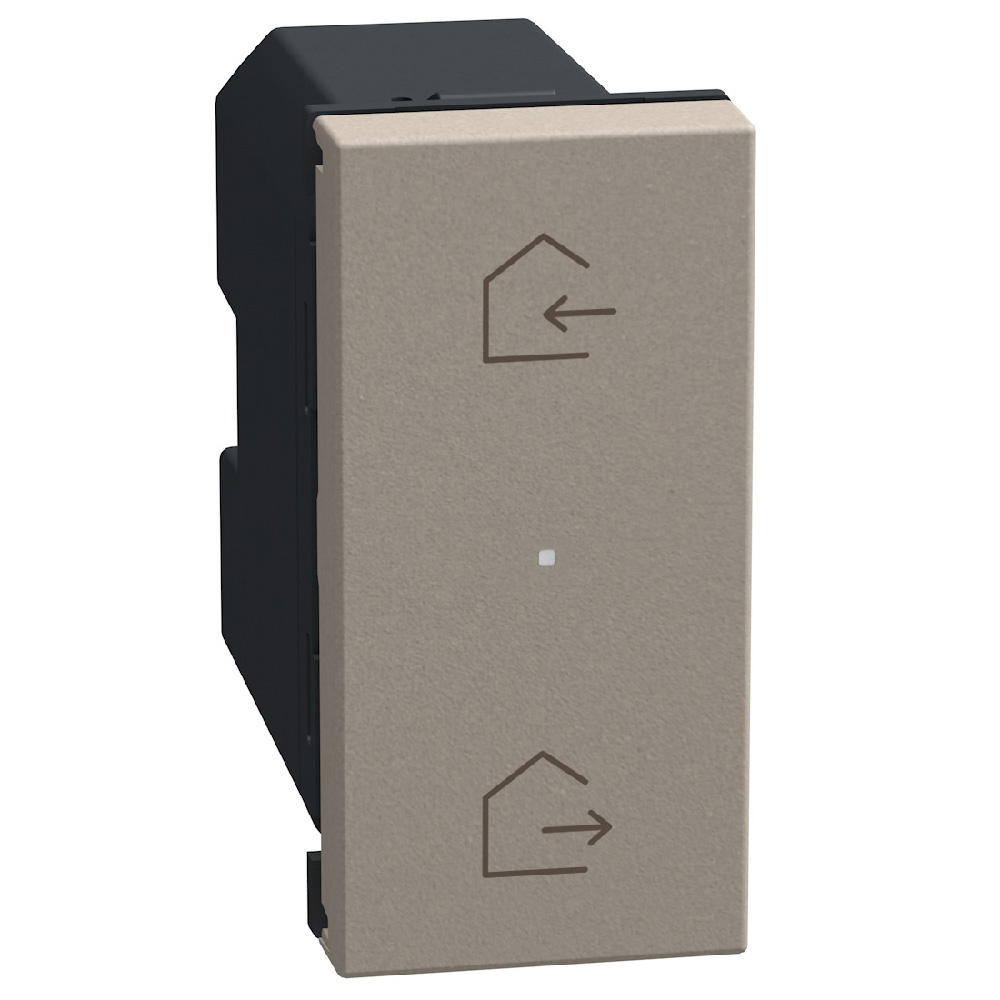

Name: Flush-mounting wireless Home/Away scenario controls - 3V battery power supply - stone
Brand: BTicino
SKU: BT-YG4570CWI
Availability: InStock

Description

The Home/Away wireless master switch allows you to add an extra Home/Away wireless switch. In the Home + Control app, choose which lights, roller shutters or electrical appliances you wish to control via the Home and Away scenarios,

Product characteristics

Predefined Home/Away scenarios which can be customised from the Home + Control app. Manage them with a single press on your wireless master switch
LED indicator with low battery warning
Supplied with a replaceable battery with an 8-year life
2.4 GHz radio technology
Stone

Recommendations / Restrictions

To add your Home/Away wireless master switch to your connected installation, you first need to purchase and install a Light Now with Netatmo gateway, as well as one or more Light Now with Netatmo connected switches, power outlets or lighting micromodules

Products benefits

Installation

The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.

Usage

The Home/Away wireless master switch complements the one included in the Light Now with Netatmo gateway. You can therefore place each of these switches at different entrances to your home

Advantages

Perfect aesthetic integration with the installed wiring devices

Technical Characteristics

Radio frequency 2400 MHz

Rolling code system Yes

Code length (Bit) 128

Range 185 m

Number of commands 2

With manual radio transmitter Yes

Flush-mounted radio transmitter Yes

Surface mounted radio transmitter No

With radio coding device Yes

Degree of protection (IP) IP40

Keyboard protection cover No

Current supply Battery

Width 22.5 mm

Height 45 mm

Depth 44 mm

Built-in depth 36 mm

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Standby consumption 0 mA

Mandatory neutral No

Stress test conformity (1000V) No

Colour Beige

RAL-number 7008

Halogen free Yes

Antimicrobial treatment No

Mounting method Flush-mounted

Contains Batteries and/or Accumulator Yes

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Zigbee

Application store for download Google Play Store, App Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Lighting management

Flush-mounting wireless Home/Away scenario controls - 3V battery power supply - stone
