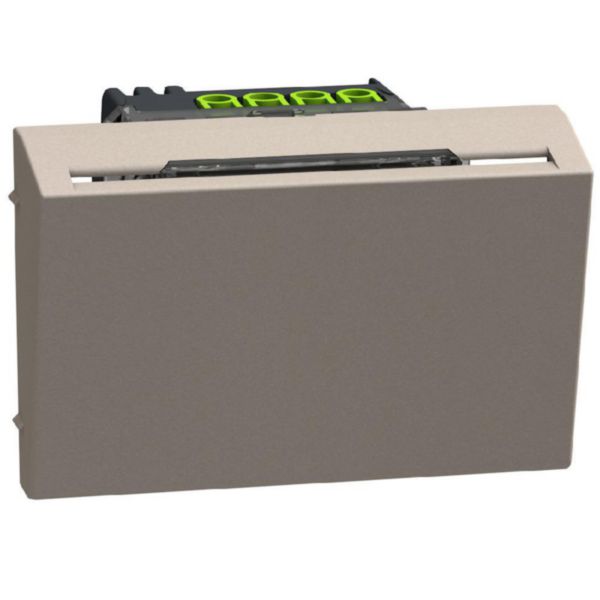

Badge-holder pocket for hotel room with RFID technology recognition - 3 modules - stone
BT-YG4548
|
8005543750841
Description
RFID Key card switch Light Now for the supply of hotel room, 3 modules, color stone
Product characteristics
- Key fob switch RFID
- Equipped with a 30-second delay after removing the badge
- 3 modules
- Color Stone
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- To be mounted on a minimum 3 modules support
Usage
- The power supply to the room is activated by the introduction of the badge and remains active for up to 30 seconds after the badge has been deactivated.
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Wiring system
Normally open contact (NO)
Method of operation
Hotel card
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
3
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7008
Colour of switch operator
Grey
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Nominal voltage
250 V
Rated current
10 A
Switching current for fluorescent lamps
10 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device width
67.5 mm
Device height
45 mm
Device depth
55 mm
Built-in depth
33 mm
Min. depth of built-in installation box
43 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
