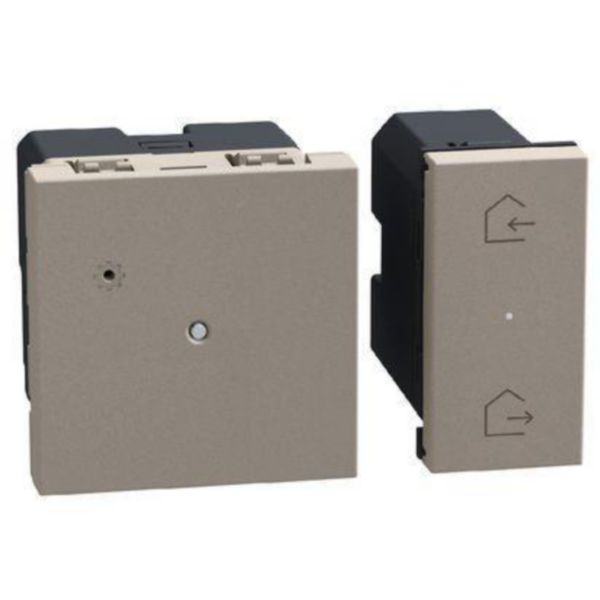

Gateway with flushmounted Home/Away wireless master switch 1 module. Power supply 100-240 Vac - 2 modules - stone
BT-YG4510C
|
8005543750056
Description
Starter pack for a connected installation allows you to control your lighting, roller shutters & electrical appliances remotely via the Home + Control app or by using your voice, and to track your appliances consumption from your smartphone
Product characteristics
- Gateway: LED indicator with locator function which can be activated in the app. Wi-Fi 2.4 GHz 802.11 b/g/n
- Home/Away wireless master switch flush-mounted 1module: Predefined Home/Away scenarios which can be customised from the Home + Control app. Supplied with a replaceable battery with an 8-year life. LED indicator with low battery warning
- The installation of the gateway is easy. It can be installed in any existing standard box.
- The wireless remote master switch home/away is provided with a 8 years lifetime battery. This battery can be replaced easily. A low battery in-app alert is available.
- Stone
Recommendations / Restrictions
- A Wi-Fi connection viayour router is required.
Products benefits
Installation
- The Light Now with Netatmo gateway is easily installed in place of an existing standard power outlet or an existing standard switch and needs a standard-depth flush-mounting box.
Usage
- Voice control of your lights and electrical appliances via a voice assistant
Advantages
- The installation of a Light Now with Netatmo device is identical as a traditionnal product. It requires only the neutral cable wiring and is placed in a standard box.
- Simply control your house with the Light Now with Netatmo products by voice control ( via Apple Siri, Google Home, Amazon Alexa). Simply saying "I am leaving" or "Good night" to your smartphone, you can swith off both selected lights, appliances and close all shutters.
- When installed on the box, the wireless remote master switch flush-mounted has the same aesthetic and thickness as all the Light Now switches.
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Zigbee
Radio frequency bidirectional
Yes
Model
Multiple interface
Mounting method
Flush-mounted
Max. number of devices per channel
100
Demounting protection
Yes
With LED indication
No
Updateable
Yes
Operating voltage (Min-Max)
230-250 V
Voltage type
AC
Protocol
TCP/IP
Provider dependent
No
Visualization
Yes
Web-Server
No
Radio interface
Yes
IR interface
No
Degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Terminal marking indication
Yes
Type of load
Not applicable
Halogen free
Yes
Connection type
Screwed terminal
Terminals capacity (Min-Max)
0.75-2.5 mm²
Connection type
Cable
Label space/information surface
No
Fitted with USB plug
No
Contains Batteries and/or Accumulator
Yes
Addressable
No
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Wifi network 2.4G, Zigbee
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Connected devices interface
