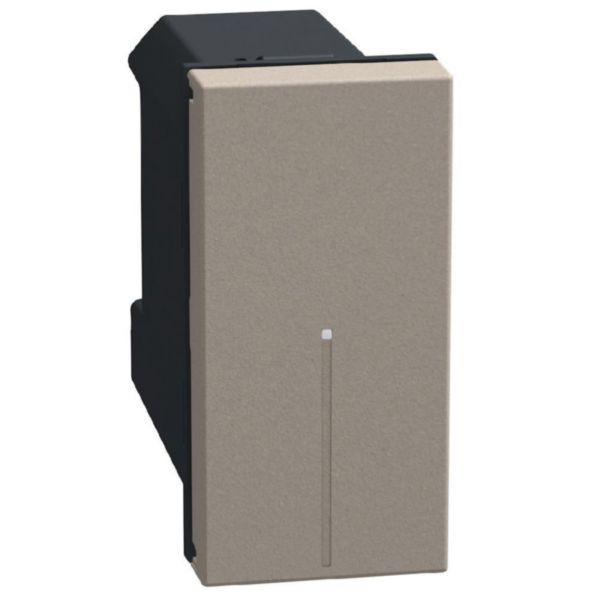

Connected dimmer/switch. Power supply 110-230 Vac - 1 module - stone
BT-YG4411C
|
8005543749722
Description
The connected switch with neutral (with dimmer option) Light Now with Netatmo allows you to control your lighting remotely via the Home + Control app or by voice. Able to control up to 150W, it can drive powerful LED loads.
Product characteristics
- Max load power : 150W under 230V~, all loads leds included
- Compatible with traditional or dimmable bulbs, including LED. Dimmer activatable via Home + Control App
- LED indicator with locator function which can be activated in the app
- Equipped with an auxiliary entry for a mechanical push button
- Radio technology 2.4GHz, using Zigbee 3.0 protocol, reliable and secure
Recommendations / Restrictions
- To connect your connected switch with neutral (with dimmer option), it is necessary to purchase and install a Light Now with Netatmo connected starter pack beforehand. To control it as a 2 way switch, it is necessary to associate one or more Light Now with Netatmo wireless commands to it and / or wire it with a mechanical push button.
Products benefits
Installation
- The Light Now with Netatmo connected switch with neutral (with dimmer option) is easily installed in place of an existing switch and requires a standard depth flush mounting box (40mm). Compatible with claw frames. Does not require the installation of a bleeder
Usage
- Control your lights with your voice using a vocal assistant
Advantages
- Perfect aesthetic integration with the installed wiring devices
- Using ON/OFF mode, compatible with all type of loads, dimmable or not
- Very easy to use with multi-zone ergonomics
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Model
Tronic
Type of load
Universal and LED Retrofit
Substation input
Yes
Light value memory
Yes
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
No
Applicable with time switch/timer
Yes
Applicable with transmission button
Yes
Applicable with infrared button
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Beige
RAL-number (similar)
7008
Transparent
No
Nominal voltage
230 V
Frequency (Min-Max)
50-60 Hz
Rated current
0.7 A
Switch capacity (Min-Max)
0-150 W
Number of channels
1
Type of fastening
Other
Min. depth of built-in installation box
50 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
IFTTT support available
No
Width
22.5 mm
Height
45 mm
Depth
45 mm
Built-in depth
37 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP40
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
3.7 mA
Mandatory neutral
Yes
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Antimicrobial treatment
No
Connection type
Screwed terminal
Number of terminals
4
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
Contains Batteries and/or Accumulator
No
Connected object
Yes
Operating method
Zigbee
Application store for download
App Store, Google Play Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Lighting management
