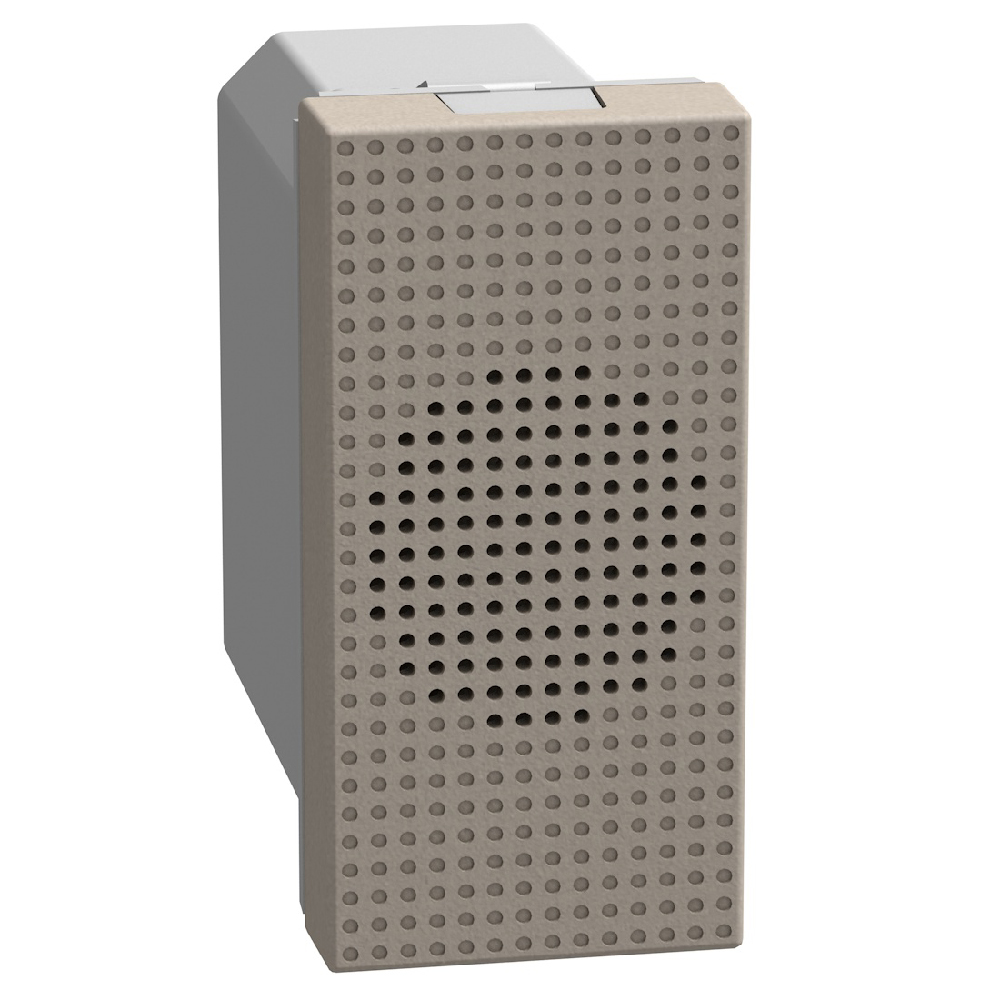

Bronze bell 230 Vac - 8 Vac - 80 dB - 1 module - stone
BT-YG4351V230
|
8005543745564
Description
The Light Now bell an acoustic alarm signal outside the home (for example, it is activated by the door button), color stone
Product characteristics
- Allows the acoustic signaling called from a room outside the house
- bell 230V stone
- 1 module
- Color Stone
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- To be used for acoustic signals outside the house (doorbell outside the door)
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Housing colour
Grey
Housing material
Plastic
Nominal voltage (Min-Max)
230-230 V
Type of current
AC
Built-in battery
No
Electricity consumption (Min-Max)
8-8 A
Connection type
Screwed terminal
Loudness
80 dB
Wireless
No
Degree of protection (IP)
IP20
Mounting method
Flush-mounted
Number of modules (module system)
1
Width in number of modular spacings
22.5
Width
22.5 mm
Height
45 mm
Depth
43 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Terminal marking indication
No
RAL-number
7008
Halogen free
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
With complemantary luminous signal
No
Contains Batteries and/or Accumulator
No
Number of ringtones
1
Connected object
No
Programming way
Not applicable
With voice command
No
Programmable
No
Interoperable connection Protocol
No
Connectable by Internet box
No
Product use function
Shutter management
