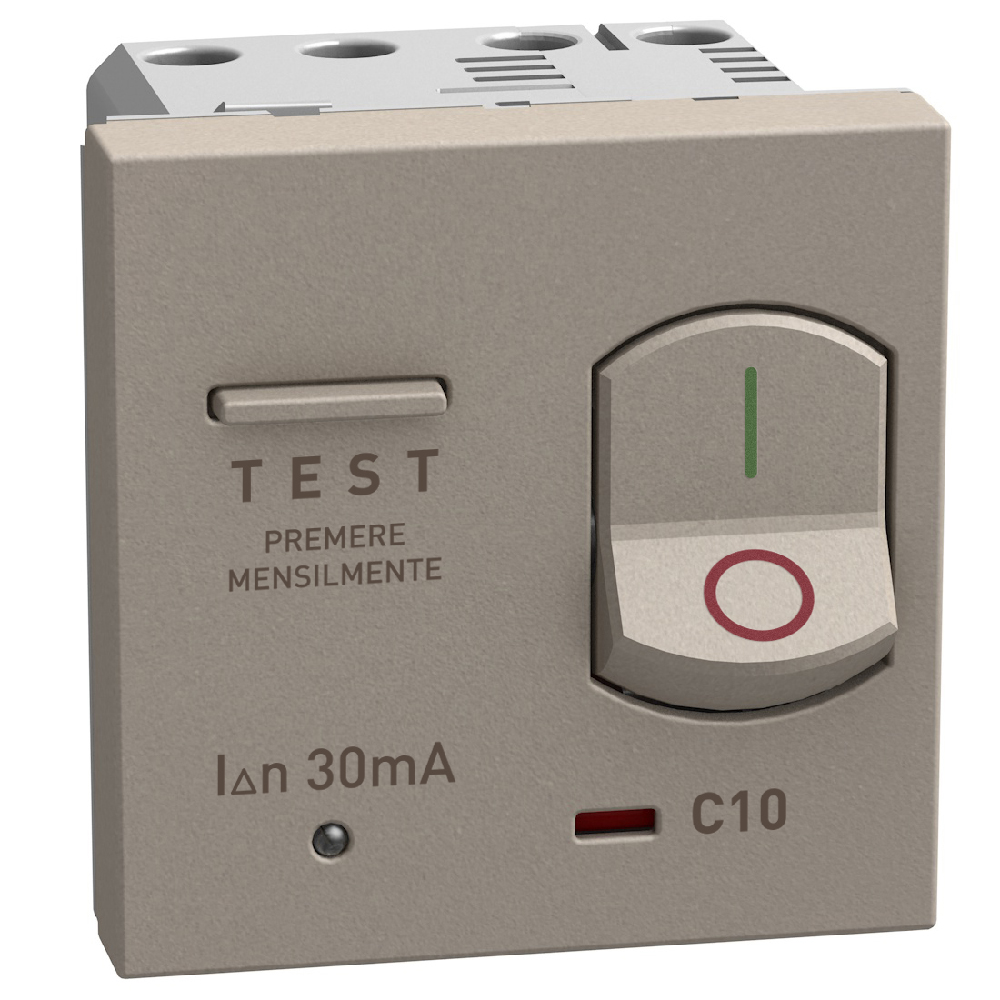

Thermal magnetic circuit breaker with earth leakage protection - 10A 230 Vac Idn 30mA - stone
BT-YG4306A10
|
8005543761717
Description
Light Now automatic Earth-leakage circuit breakers- two-pole automatic thermal magnetic circuit breakers with a protected pole 10A 30mA 230 Va.c. - indicator of open/closed contacts - test pushbutton
Product characteristics
- Automatic Earth-leakage circuit breakers
- RCBO 1P+N 10A 30mA, 230 Va.c. stone
- 2 modules
- Color Stone
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Breaking capacity 1500 A 230 Va.c.
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Number of poles (total)
1
Number of protected poles
1
Rated voltage
230 V
Rated insulation voltage Ui
253 V
Rated impulse withstand voltage Uimp
4 kV
Rated current
10 A
Rated fault current
30 A
Leakage current type
AC
Current limiting class
1
Rated short-circuit breaking capacity according to EN 61009
1500 kA
Rated short-circuit breaking capacity according to IEC 60947-2
1500 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1
1500 kA
Disconnection characteristic
Undelayed
Surge current capacity
3000 kA
Voltage type
AC
Frequency
50/60 Hz
Release characteristic
C
Concurrently switching neutral conductor
Yes
With interlocking device
No
Ambient temperature during operating (Min-Max)
-5-35 °C
Width in number of modular spacings
45
Built-in depth
40 mm
Anti-nuisance tripping version
No
Degree of protection (IP)
IP20
Connectable conductor cross section solid-core (Min-Max)
2.5-3 mm²
Connectable conductor cross section multi-wired (Min-Max)
1.5-2.5 mm²
Width
45 mm
Height
45 mm
Depth
50 mm
degree of impact strength (IK)
IK04
Storage temperature (Min-Max)
-5-35 °C
Nominal voltage (Min-Max)
110-230 V
Electric supplying direction
By the rear of the product
Terminal marking indication
No
Stress test conformity (1000V)
No
Colour
Grey
RAL-number
7008
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Other
Label space/information surface
No
