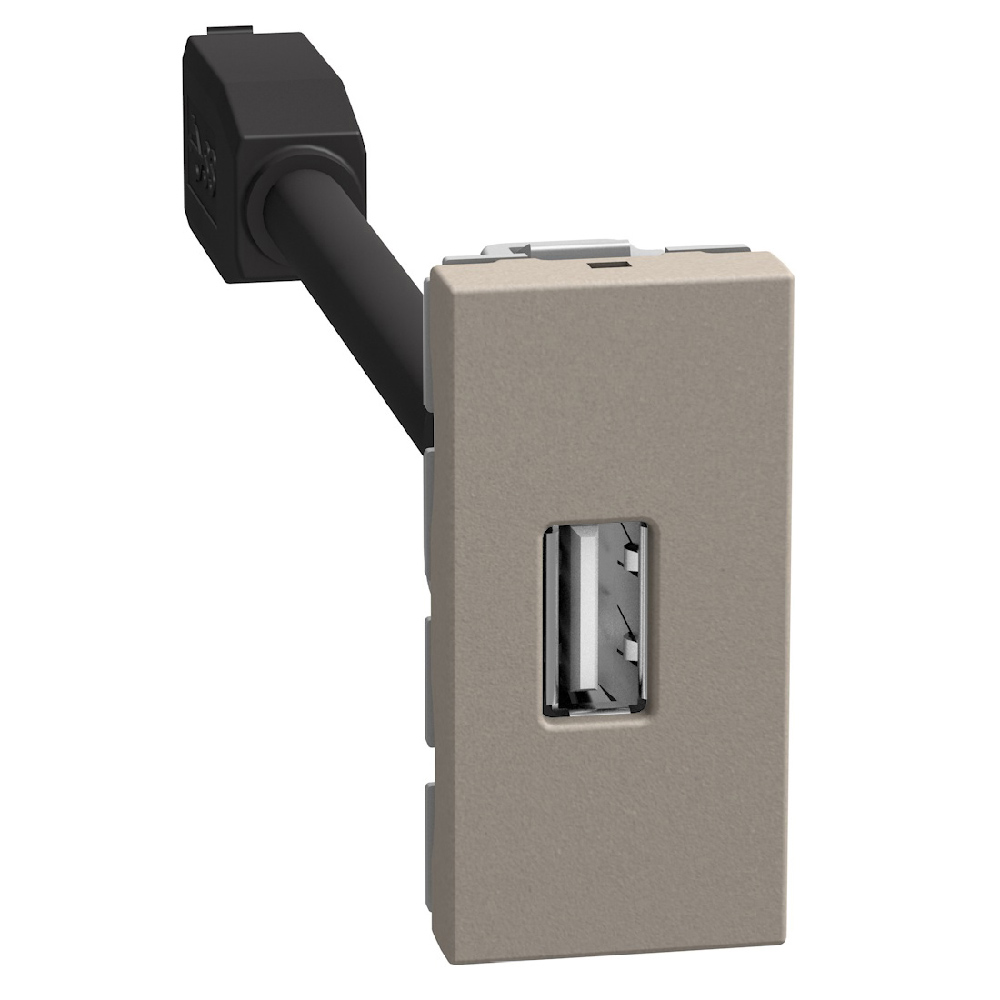

Pre-connected type A USB connector - 1 module - stone
BT-YG4285P
|
8005543749043
Description
Light Now pre-connected type A USB connector
Product characteristics
- Pre-connected type A USB connector
- connector usb A preterm stone
- 1 module
- Color Stone
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect devices with USB-A port
Advantages
- It is coordinated with the Light Now aesthetic
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Assembly arrangement
Basic element with central cover plate
Type of connector
USB
With buses/couplings
Yes
Suitable for number of connectors
1
Category
Other
Colour
Grey
RAL-number
7008
Connection type
Other
Shielded buses
No
Shielded housing
No
Separate earthing connection
No
With label space
No
Compatible with third-party covers
No
Separate strain relief
No
Mounting method shielding connection
None
Outlet direction
Straight
With dust cover
No
With terminal resistor
No
Degree of protection (IP)
IP20
Mechanical coding
No
Colour coding
No
Device width
22.5 mm
Device height
45 mm
Device depth
37 mm
Number of modules (module system)
1
Built-in depth
28.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Entry membrane gland type
Not applicable
Cable support
Not applicable
Documentation
1 documents
Technical Sheet
IDP001955 | PDF (340 KB) | EN
5 documents
Brochure
BRO-LHNOW-2M | PDF (10.3 MB) | EN
Brochure
BRO-LHNOW-3M | PDF (13.1 MB) | EN
B2B Documents
CAT-LHNOW-2M | PDF (25.2 MB) | EN
B2B Documents
CAT-LHNOW-3M | PDF (21.5 MB) | EN
B2B Documents
PRE-LHNOW | PDF (2.4 MB) | EN
