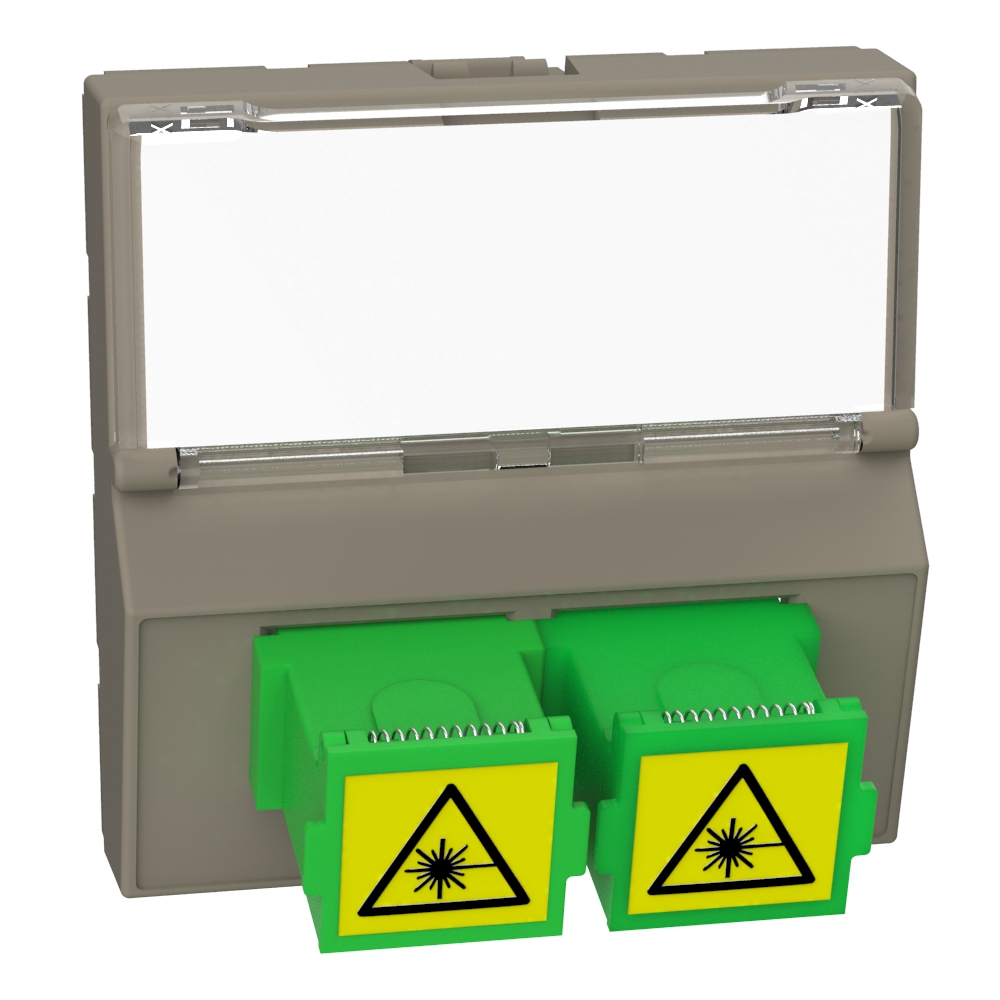

Fiber optic socket with SC/APC
BT-YG4268SCA
|
8005543778678
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Number of buses
2
Number of couplers
2
Type of connector
SC duplex
Colour
Grey
RAL-number
7008
Centre plate
No
With cover frame
No
With label space
No
With strain relief
No
Wire stock
No
Outlet direction
Straight
Dust protection cap
Shutter
Device width
45 mm
Device depth
40 mm
Device height
45 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP20
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Antimicrobial treatment
No
Label space/information surface
No
